Ever stripped gold plating to find discolored nickel underneath? That’s ENIG black pad—a hidden defect causing PCB failures[^1] silently. Spotting it early saves boards from sudden death.

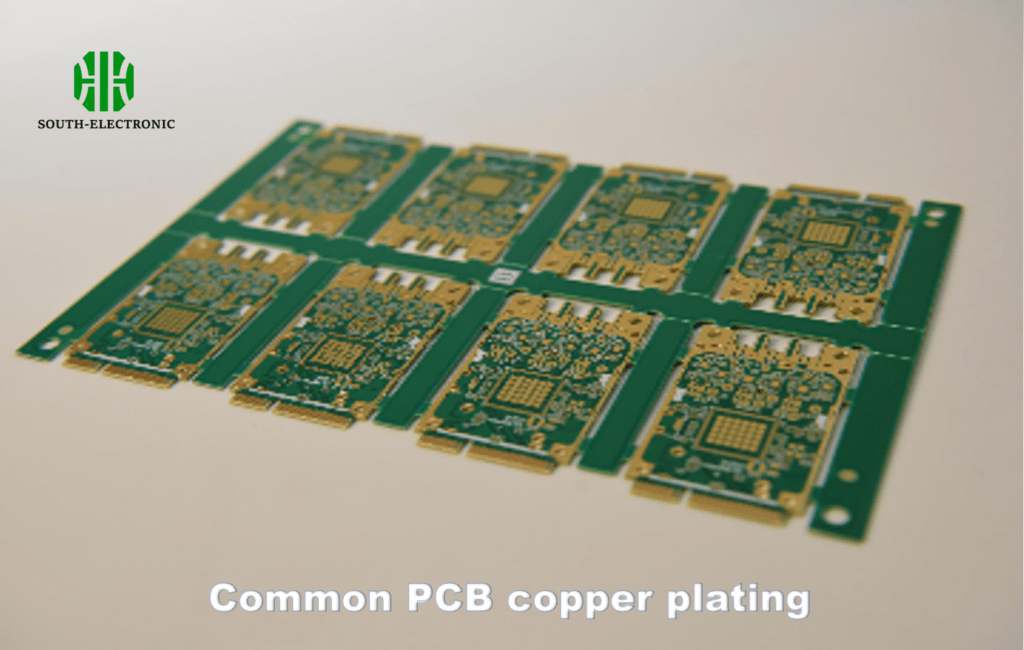

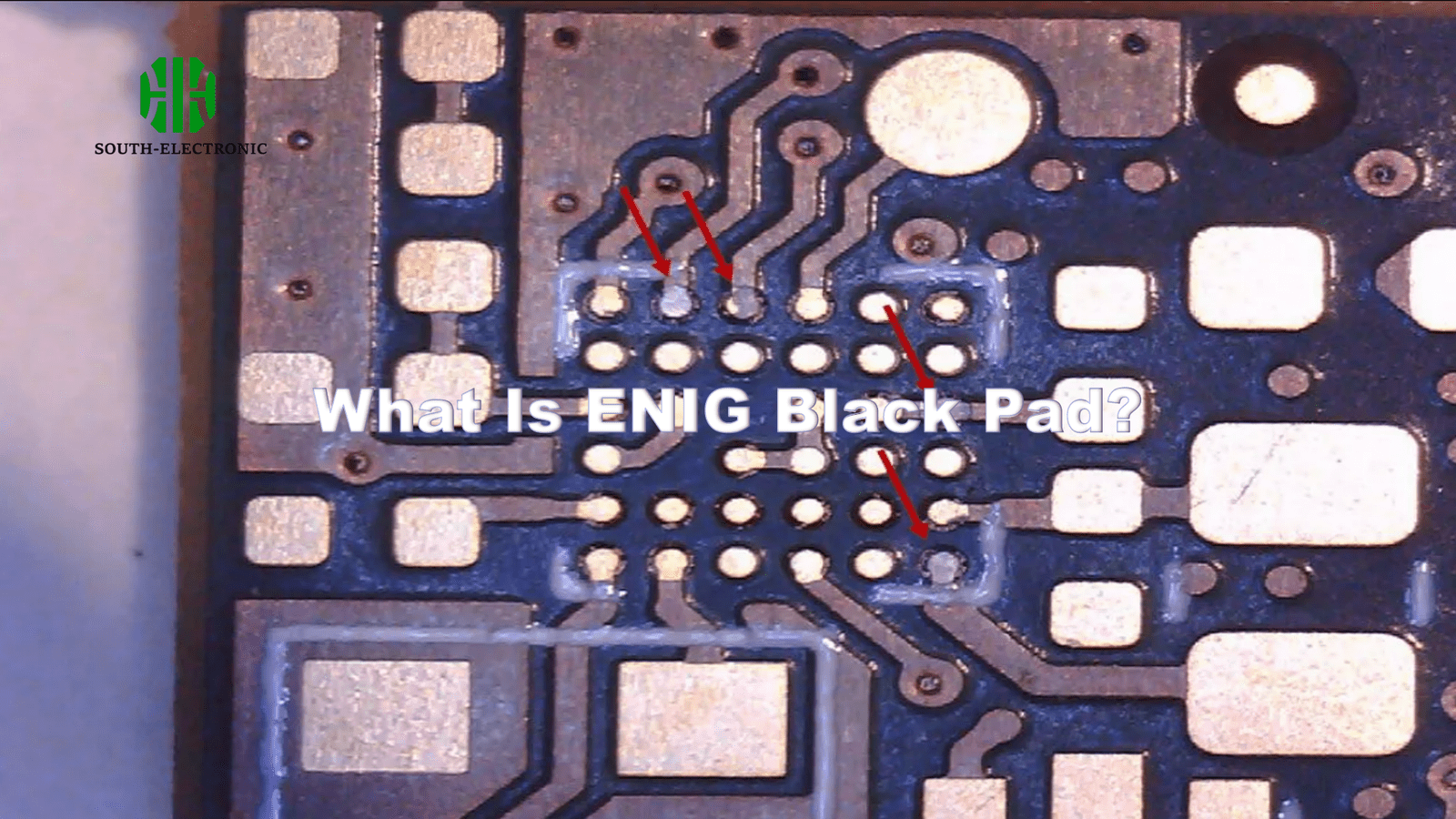

ENIG black pad[^2] refers to corroded nickel layers under immersion gold plating, causing weak solder joints. This invisible defect occurs during chemical processing and remains undetected until field failures begin.
Black pad issues lurk beneath flawless surfaces, making them deadly for electronics. Let’s crack why this corrosion happens, how to catch it, and whether we can reverse its damage.
What Causes ENIG Black Pad in PCB Manufacturing?
Faulty chemistry turns nickel into a brittle sponge. Agitation paired with incorrect pH levels accelerates corrosion under gold layers you can’t see through.
Black pad forms due to aggressive chemical exposure during PCB processing. Overactive cleaning agents, incorrect nickel bath pH, and excessive phosphorus in nickel deposits create porous layers prone to corrosion.
Root Causes Breakdown
ENIG black pad stems from two major process flaws:
| Cause Category | Specific Factors | Impact on Nickel |
|---|---|---|
| Chemical | Over-etching during cleaning | Removes protective nickel top layer |
| High phosphorus content (>10%) | Creates brittle nickel structure | |
| Operational | Improper pH control (below 4.5) | Accelerates nickel oxidation |
| Extended immersion time in gold bath | Increases nickel exposure to corrosive solutions |
Nickel corrosion starts when cleaning solutions strip the nickel’s protective oxide layer. Acidic gold baths then attack the exposed metal. I once analyzed a batch where rinsing time errors caused 23% black pad failure rates. Operators reduced immersion time by 15 seconds, cutting defects to 4%.
How to Detect Black Pad Issues in ENIG Surface Finish?
Visual checks won’t save you. Only destructive testing reveals the truth beneath gold’s deceptive shine.

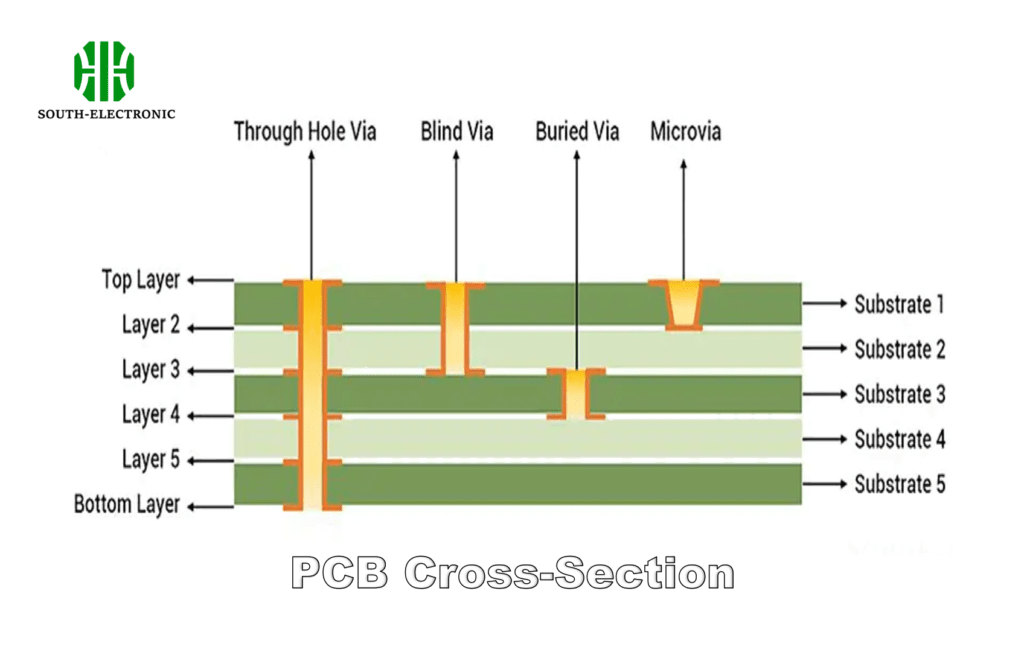

Black pad requires cross-sectional analysis[^3] or scanning acoustic microscopy (SAM) for detection. Non-destructive methods like X-ray often miss subtle nickel layer degradation.
Detection Methods Compared
Three practical approaches for uncovering hidden corrosion:
| Method | Detection Capability | Cost | Turnaround Time |
|---|---|---|---|
| Cross-section + SEM | High-resolution | $$$ | 2-3 days |
| SAM | Sub-surface imaging | $$ | 1 day |
| Microsectioning | Limited sample area | $ | 4 hours |
A client once insisted their QC passed all PCBs. We microsectioned 10 boards—three showed black pad[^4]. SAM later revealed 12% of their production lot had sub-surface corrosion. Detection demands sacrificing samples, but it prevents costly recalls.
Can Black Pad Be Prevented in ENIG Plating Processes?
Control chemistries like a master chef. Precise bath management stops corrosion before it cooks your nickel.
Yes. Maintaining nickel bath pH[^5] between 4.8-5.2, using mild cleaners, and optimizing gold immersion time prevents black pad. Regular bath analysis and phosphorus content checks below 9% are critical.
Prevention Checklist
Key parameters for black pad-free plating:
| Control Point | Target Range | Monitoring Frequency |
|---|---|---|
| Nickel bath pH | 4.8 - 5.2 | Every 2 hours |
| Cleaner concentration | 5-7% vol | Daily titration |
| Gold immersion time | 6-8 minutes | Per batch |
| Nickel phosphorus | 7-9% weight | Weekly chemical analysis |
Implementing automated pH sensors in one facility reduced black pad from 8% to 0.7% in six months. Pair this with rinse water conductivity checks under 50 µS/cm to prevent chemical carryover.
Is Black Pad Reversible?
Once corrosion eats nickel, it’s game over. But clever repairs can sometimes salvage boards.
No. Corroded nickel can’t be restored. Options include localized gold stripping/replating or epoxy reinforcement of solder joints—but prevention remains better than cure.
Salvage Techniques for Failed Boards
Limited fixes for black pad-affected PCBs:
| Repair Method | Success Rate | Cost Impact | Application Scope |
|---|---|---|---|
| Selective gold removal & re-plating | 60-70% | High | Critical components only |
| Conductive epoxy under components | 40-50% | Moderate | Non-BGA parts |
| Solder joint reinforcement | 30% | Low | Low-stress areas |
I worked on military avionics boards with black pad. Re-plating 200 critical pads took three weeks and $12k—versus $300k for replacement boards. Salvage works only for high-value/low-volume scenarios.
Conclusion
Black pad hides until solder joints crack. Control nickel chemistry, employ rigorous testing, and prioritize prevention—because once corrosion strikes, repair costs soar. Vigilant process control remains your best defense against this stealthy PCB killer.
