Top Cable Harness Manufacturing Services
South-Electronic

Are you looking for top-tier cable harness manufacturing solutions?

Choose South-Electronic for unparalleled quality, reliability, and exceptional value. Discover the difference with our comprehensive cable harness services — from initial design to final production, we guarantee precision, efficiency, and compliance with your specific needs.

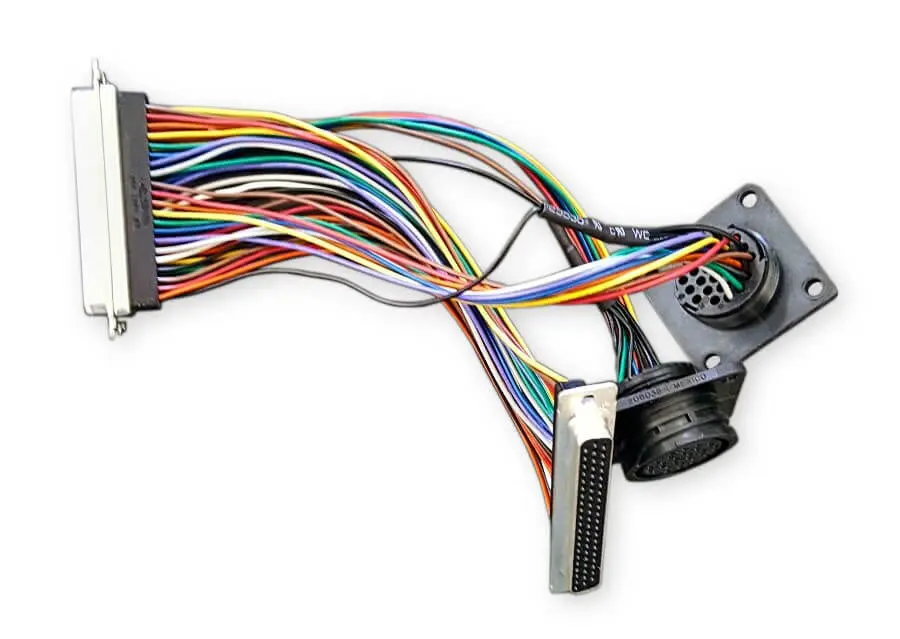

Your Trusted Provider of Cable Harness Solutions

Welcome to South-Electronic, where you’ll find superior cable harness manufacturing services renowned for their meticulous construction and rapid execution. <br><br>

Our cable harnesses ensure optimal performance, making them perfect for rigorous testing in various applications before mass production. Explore a range of configurations tailored to enhance your production process. Whether you need robust harness solutions for automotive applications or precise configurations for consumer electronics, our cable harness services excel in delivering swift and accurate results. Depend on South-Electronic for unmatched quality and speed in your manufacturing projects. Our services elevate your product’s development through exceptional precision and expedited production. Partner with us for success and innovation in your field.



在此添加您的标题文本

Why Choose South-Electronic?

Select South-Electronic for our specialization in custom, high-quality cable harness manufacturing for diverse applications. Our team offers extensive experience, ensuring top-quality and exceptional service from inception to completion.

Related Project We had Done

Customer Reviews

Common Questions

Most Popular Questions

South-Electronic specializes in a wide range of cable harnesses, including simple single-connector harnesses to complex multi-connector, multi-conductor harnesses, suitable for various industries such as automotive, consumer electronics, and industrial applications.

Absolutely. We excel in creating custom cable harness solutions tailored to your specific requirements. Our services include consultation, design, material selection, and prototyping to ensure your cable harness perfectly fits your application.

The lead time can vary based on the complexity and quantity of the order. However, we are known for our rapid prototyping and efficient production processes, which allow us to offer some of the quickest turnaround times in the industry.

Our cable harnesses undergo rigorous testing and quality assurance processes. We are an ISO9001 certified factory, and every product meets stringent standards for durability and performance before being shipped.

We offer a variety of materials, including PVC, rubber, silicone, and Teflon, to suit different environmental and mechanical requirements. Material selection is part of our consultation process, ensuring you get the best material for your needs.

We support both small batch orders and large-scale production needs. Our flexible manufacturing process allows us to cater to businesses of all sizes, ensuring that both small and large orders are produced with the highest quality.

Yes, we can ship to nearly any location worldwide. Our main export countries are in Europe and America, but we can arrange logistics and shipping to meet the needs of customers in other regions as well.

Our cable harnesses are used in a variety of industries including automotive, telecommunications, consumer electronics, and more. They are ideal for any industry requiring reliable and durable electrical systems.

Clients can start by contacting us through our website or directly via email at info@southelectronicpcb.com to discuss their needs. From there, we will schedule a consultation and move forward with design and prototyping.

Our commitment to customization, speed, and quality sets us apart. With over a decade of experience, state-of-the-art manufacturing technology, and a focus on client-specific solutions, we provide unmatched service and product quality in the cable harness industry. material selection, and prototype testing to ensure your product meets all expectations and industry standards.

Send us a message

The more detailed you fill out, the faster we can move to the next step.

在此添加您的标题文本

Проснувшись однажды утром после беспокойного сна, Грегор Замза обнаружил, что он у себя в постели превратился в страшное насекомое.

The Complete Guide For Cable Harness

Cahpter 1

Introduction to Cable Harnesses

Cable harnesses, also known as wire harnesses, are assemblies of electrical cables or wires which transmit signals or electrical power. These are used in various electronic and electrical applications, from automobiles to spacecraft. The harnesses are bound together by straps, cable ties, cable lacing, sleeves, electrical tape, conduit, or a weave of extruded string. They are preferable over loose wires and cables due to their ability to keep the wiring systems organized and significantly reduce the installation time.

Moreover, by constraining the wires into a non-flexing bundle, usage of space is optimized, and the risk of a short is minimized. Harnesses also provide an added layer of protection against the effects of vibrations, abrasions, and moisture. Over the years, the use of cable harnesses has evolved, catering to complex circuits that require precision and durability, enhancing the performance and reliability of machines and systems across various industries.

Cahpter 2

Understanding Cable Harness

A cable harness typically consists of several components, including:

Wires and Cables: The primary conductors of electrical signals or power, selected based on the current, voltage, and operational requirements.
Connectors: These are used to connect the wires to the electronic devices, facilitating easier assembly and maintenance.
Sheathing: Protective outer covers that shield the wires from environmental factors, mechanical wear, and electromagnetic interference. Sheathing materials include shrink-wrap, rubber, or vinyl.
Terminals: The contact endpoints, which can be soldered, crimped, or twisted to connect the harness to other components or systems.
These components are assembled into a harness that maximizes functionality while minimizing physical space and potential faults. The quality of these components determines the overall efficiency and lifespan of the harness.

Cahpter 3

Types of Cable Harnesses

Cable harnesses come in various forms to cater to diverse needs:

Standard Harnesses: Typically used in household electronics and simple mechanical tools.
Custom Harnesses: Designed to meet specific client requirements which can’t be fulfilled by standard harnesses.
Automotive Harnesses: These are used in vehicles and must resist heat, vibrations, and chemicals.
Aerospace Harnesses: Designed to meet rigorous standards due to the critical nature of their application, often lightweight and highly reliable.
Each type of harness is designed to fulfill the particular requirements of the application it serves, which dictates the materials used and the manufacturing processes involved.

Cahpter 4

Design Considerations for Cable Harnesses

Designing an effective cable harness requires attention to detail in several key areas:

Electrical Requirements: Voltage, current, and power requirements must be understood to select the appropriate wires and components.
Environmental Factors: Temperature, moisture, and potential exposure to chemicals impact the choice of materials.
Physical Layout: Efficient routing and bundling practices can significantly affect the installation and performance of the harness.
The use of CAD software and detailed schematic diagrams ensures that every aspect of the cable harness is accurately designed and documented before production.

Cahpter 5

Materials Used in Cable Harness Manufacturing

Selecting the right material is crucial for the performance and durability of a cable harness. Common materials include:

Copper: Widely used due to its excellent electrical conductivity.
Aluminum: Lighter and less expensive than copper but with lower conductivity.
PVC, Rubber, Silicone, Teflon: These materials are used for sheathing and insulation based on their resistance to fire, chemicals, and temperature.
The choice of material affects not only the cost and performance of the harness but also its environmental footprint and recyclability.

Cahpter 6

Manufacturing Process of Cable Harnesses

The manufacturing process involves several steps:

Cutting and Stripping Wires: Wires are cut to length and stripped to expose the metal conductors.
Assembly: Wires are routed according to the design specifications and bound together.
Termination and Connector Installation: Terminals and connectors are attached to the ends of the wires.
Testing: Electrical tests are conducted to ensure the assembly meets the required specifications.
Automation in manufacturing has increased the speed and accuracy of these processes, allowing for more complex and reliable products.

Cahpter 7

Testing and Quality Assurance for Cable Harnesses

Quality assurance is integral to manufacturing cable harnesses. This includes:

Visual Inspections: Checking for physical defects.
Continuity Tests: Ensuring that there are no electrical breaks in the harness.
Functionality Tests: Verifying that the harness meets all operational requirements.
Adherence to standards like ISO 9001 helps maintain high quality and customer satisfaction.

Cahpter 8

Common Challenges and Solutions in Cable Harness Production

Signal Interference: Can be mitigated by using proper shielding techniques.
Physical Damage: Using robust sheathing materials can provide better protection.
Complex Assemblies: Advanced manufacturing techniques and improved design software can reduce errors and streamline production.

Cahpter 9

Case Studies: Successful Cable Harness Applications

Real-world applications of cable harnesses demonstrate their versatility and effectiveness. For instance, in the automotive industry, a harness might be used to integrate the electrical systems of a vehicle, improving reliability and ease of maintenance.

Cahpter 10

Future Trends and Innovations in Cable Harness Technology

Emerging trends include the integration of smart technologies into cable harnesses and the development of greener materials. These innovations promise to improve performance and sustainability of cable harnesses, aligning them with future technological advancements.
