Ever built electronics? Bad PCB setup causes circuit failures I've seen firsthand. It ruins projects and wastes time. Learn the structure now for durable designs.

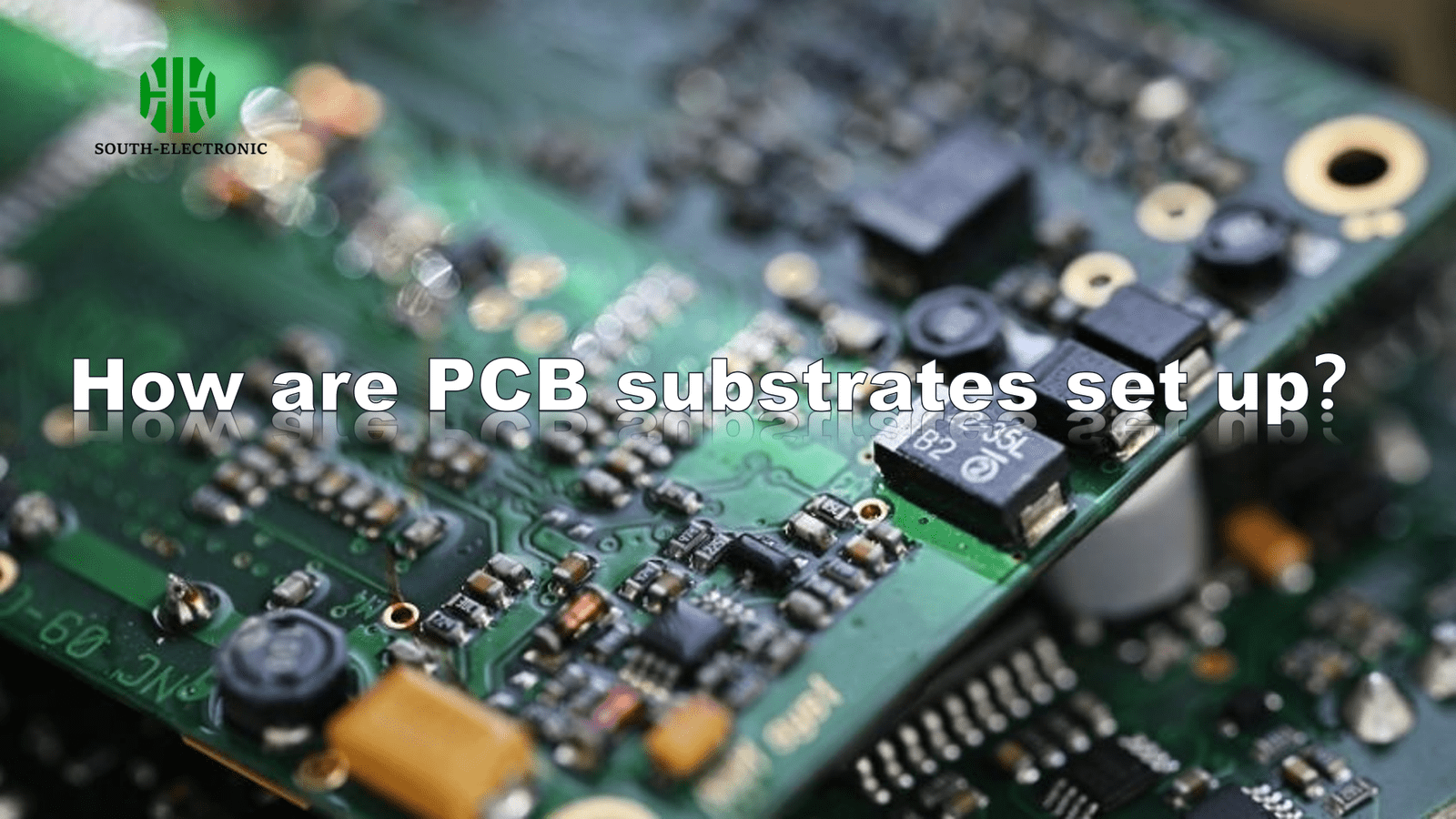

PCB substrates are layered constructions combining conductive copper and insulating materials. The core is typically FR-4 (glass-reinforced epoxy). Copper gets laminated on one or both sides. Complex boards stack multiple layers. This creates pathways for electronic signals.

Understanding setup is just the start. Material choices and sourcing matter more for real projects. I'll explain applications, materials, and supplier risks next.

What are the top 5 real-world applications of PCB substrates?

Struggling to match substrates to applications? Wrong choices increase project failures. I've fixed many misfits. Know where PCBs excel.

Primary uses include consumer electronics, automotive systems, medical devices, industrial controls, and aerospace tech. Each demands specific substrate performance levels.

Different applications need custom PCB features. Consider these key requirements:

Heat Tolerance Needs

High-power devices create heat. Substrates must withstand temperatures without warping. Automotive and industrial PCBs face extreme conditions.

Signal Frequency Demands

High-speed electronics (5G, WiFi) need low-loss materials. Signal integrity suffers with wrong choices. Consumer devices push these limits daily.

Physical Stress Factors

Vibration resistance is vital. Aerospace and automotive PCBs endure constant shaking. Test substrate flexibility before committing.

FR-4 vs high-frequency vs metal core: which PCB substrate material is best suited for your project?

Picked the wrong material before? I've seen signal loss and meltdowns happen. Material mismatch wastes money. Match properties to your needs exactly.

FR-4 works for most general uses. High-frequency substrates suit RF/wireless applications. Metal core excels in high-power/heat scenarios. Prioritize project requirements.

Evaluate materials using three key factors:

Cost Analysis

Budget drives many projects. FR-4 costs 40% less than specialty materials. But high-frequency materials preserve signal integrity in critical RF applications. Value matters.

Temperature Profiles

Metal core PCBs dissapate heat 8x better than FR-4. Necessary for power converters or LED arrays. Ignore this and risk thermal shutdown.

Signal Loss Thresholds

High-frequency substrates maintain signal strength over distance. FR-4 causes up to 30% more loss at 5GHz frequencies. Test your frequency bands.

Where to find trusted PCB substrate suppliers and avoid counterfeit ones?

Got fake materials before? I recall receiving 30% sub-spec copper. Counterfeits damage product reliability. Protect your projects with smart sourcing.

Purchase from certified distributors like Digi-Key or Mouser. Demand material certifications. Order samples first. Check third-party reviews consistently.

Three steps prevent sourcing disasters:

Certification Checks

Legitimate suppliers provide UL or ISO certifications. I always request these first. Counterfeits often have blurry documents or vague details.

Physical Sample Testing

Measure copper thickness manually. Conduct basic conductivity checks. Compare against specifications. Small sample orders are cheap protection.

Supply Chain Transparency

Trace origin through lot numbers. Reliable partners share material sources willingly. Vague answers signal danger.

Conclusion

PCB setup forms electronic foundations. Material choice drives real-world success. Use quality suppliers for reliability. Build with confidence.
