Assembling a PCB feels overwhelming. Mistakes cause expensive failures. But I learned a clear process makes it manageable for anyone. Follow these proven steps for success.

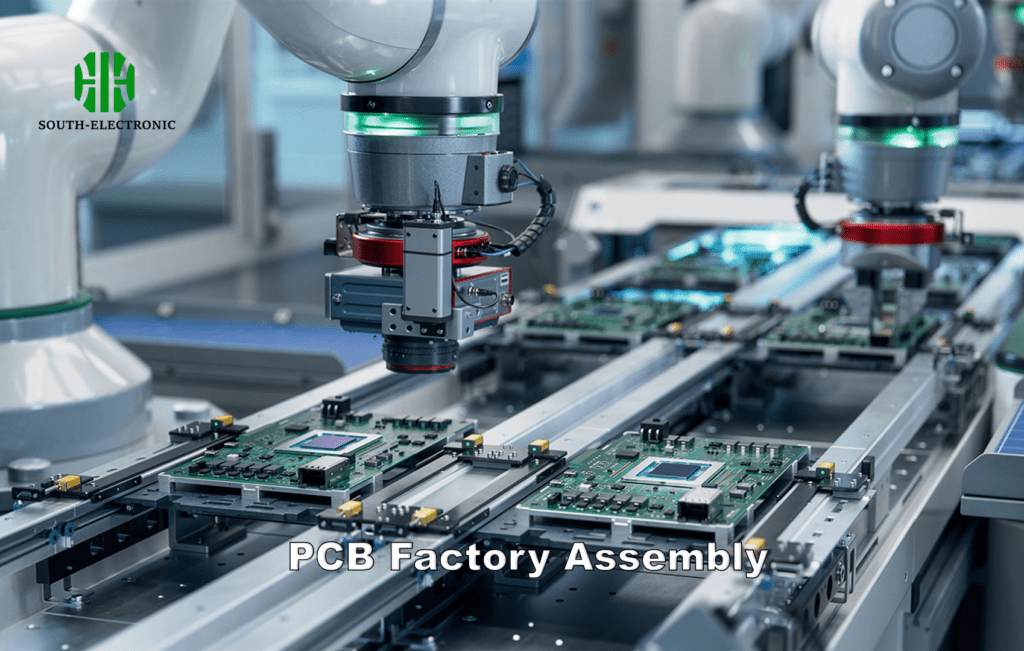

PCB assembly involves preparing the board, applying solder paste, placing components, and soldering connections. Automated assembly uses machines for precision, while manual works for prototypes. Getting it right prevents short circuits and device failures.
Understanding PCB assembly saves time and money. Here’s how the industry approaches ordering, costs, and specialized services I often recommend.
How do PCB assemblies get ordered?
Ordering PCB assemblies confused me initially. Deadlines approached while I struggled with files. Then I discovered streamlined systems that work.
Ordering involves uploading design files to a pcb assembly manufacturer online portal. You specify quantities, materials, and special requirements. Most pcb assembly services offer instant quotes.
Key steps in PCB ordering
The process breaks into clear phases:
| Order Stage | Key Actions | My Tip |
|---|---|---|
| Design Submission | Upload Gerber files, specify layer count and materials | Triple-check file versions before uploading |
| Quotation | Manufacturer calculates costs based on complexity and quantity | Request breakdowns for pcb fabrication and assembly costs separately |
| Component Sourcing | Supplier provides parts or uses customer-supplied components | For prototypes, verify component availability upfront |
| Production Scheduling | Agree on timelines for pcb manufacturing assembly | Always build in 3-5 day buffer for delays |
| Assembly & Testing | Soldering, inspection, and functional testing occur | Never skip AOI (Automated Optical Inspection) tests |
Initially I underestimated documentation needs. Now I prepare three key documents: Gerber files for board production, a Bill of Materials (BOM) listing exact components, and centroid data for automated placement. Missing any caused two-week delays in my first automotive pcb assembly project. Reputable pcb assembly companies use secure online portals for file transfers and track production stages in real-time. For medical pcb assembly, I add detailed testing certifications upfront. Turnaround times vary: standard assembly pcb takes 2-3 weeks while quick turn pcb assembly delivers in 5 days at 30% premium.
How much does PCB assembly cost?
My first quote shocked me. $500 for ten boards seemed high. Eventually I learned cost factors I now control.

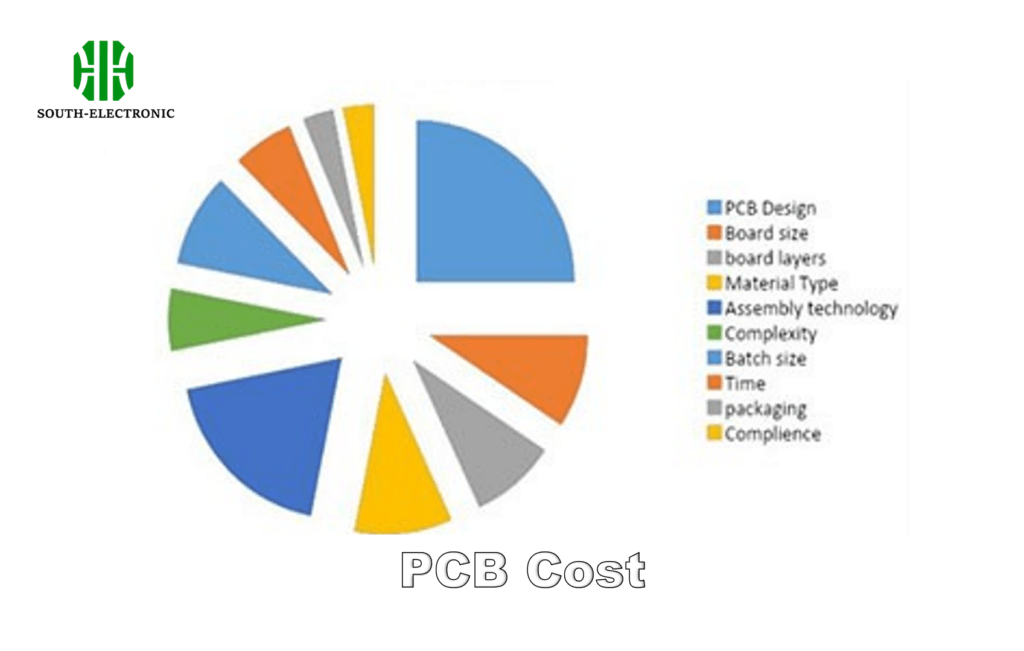

PCB assembly cost depends on board complexity, components used, and order quantity. Simple smt pcb assembly starts around $0.50 per board in volume. Prototype runs typically cost more per unit.
Cost factors explained
Breakdown of primary expenditure areas:
| Cost Factor | Low-Cost Example | High-Cost Example | Impact Level |
|---|---|---|---|
| Board Complexity | 2-layer board | 12-layer HDI with microvias | ★★★☆☆ |
| Component Type | Basic resistors/capacitors | BGA chips or rare connectors | ★★★★★ |
| Order Volume | 1000+ boards | 5 prototype boards | ★★★★☆ |
| Testing Requirements | Basic visual check | Full X-ray and functional testing | ★★★☆☆ |
| Lead Time | Standard 15-day production | 48-hour quick turn pcb assembly | ★★★★☆ |
During smd pcb assembly projects, I negotiate best prices by combining orders with colleagues. Component selection causes 60% of cost variations - specialized ICs for automotive pcb assembly cost triple generic versions. pcb assembly usa services typically charge 20-40% more than overseas but ensure faster shipping and simpler logistics. For prototype pcb assembly, most manufacturers charge setup fees between $100-$300. Medical pcb assembly adds certification costs (FDA/ISO compliance runs $500-$2000 per project). Always compare at least three pcb assembly manufacturers for new designs. Bulk orders above 500 units lower per-board costs dramatically.
What is turnkey pcb assembly?
I used to manage seven suppliers for one board. Then I discovered turnkey saves my sanity. Now it's my default choice.
Turnkey pcb assembly means the manufacturer handles everything - from sourcing parts to final testing. You provide designs and receive assembled pcb boards ready for use.
Why professionals choose turnkey services
Compared to traditional approaches:
| Aspect | Turnkey PCB Assembly | Partial Service | Advantage |
|---|---|---|---|
| Component Sourcing | Full procurement by manufacturer | Customer supplies everything | Saves 10-20 hours of sourcing |
| Supply Chain Risk | Vendor manages shortages | You chase alternate parts | Avoids production halts |
| Documentation | Single-point responsibility | Multiple vendor coordination | Eliminates communication gaps |
| Quality Accountability | One company handles defects | Finger-pointing between vendors | Faster problem resolution |
| Cost Structure | Fixed per-board price | Variable material costs | Predictable budgeting |
In my last project, turnkey saved three weeks. The pcb assembly manufacturer replaced unavailable chips with approved alternatives immediately. pcb assembly services handling fab and assembly together prevent mismatches between board specs and components - a common prototype pcb assembly failure point. Automotive pcb assembly demands stringent traceability which turnkey providers document systematically. Downsides exist: specialized pcb assembly companies might not accommodate custom components without markup. Always verify their component libraries first for medical pcb assembly with unique sensors. For projects under $10k, I find turnkey pcb assembly and manufacturing reduces administrative costs by 45%. Ask about their pcb assembly process certifications upfront - ISO 9001 matters for commercial products.
Conclusion
Proper PCB assembly combines precise steps with manufacturer selection. Remember these insights. They’ll save you time and prevent costly mistakes during your next project.
