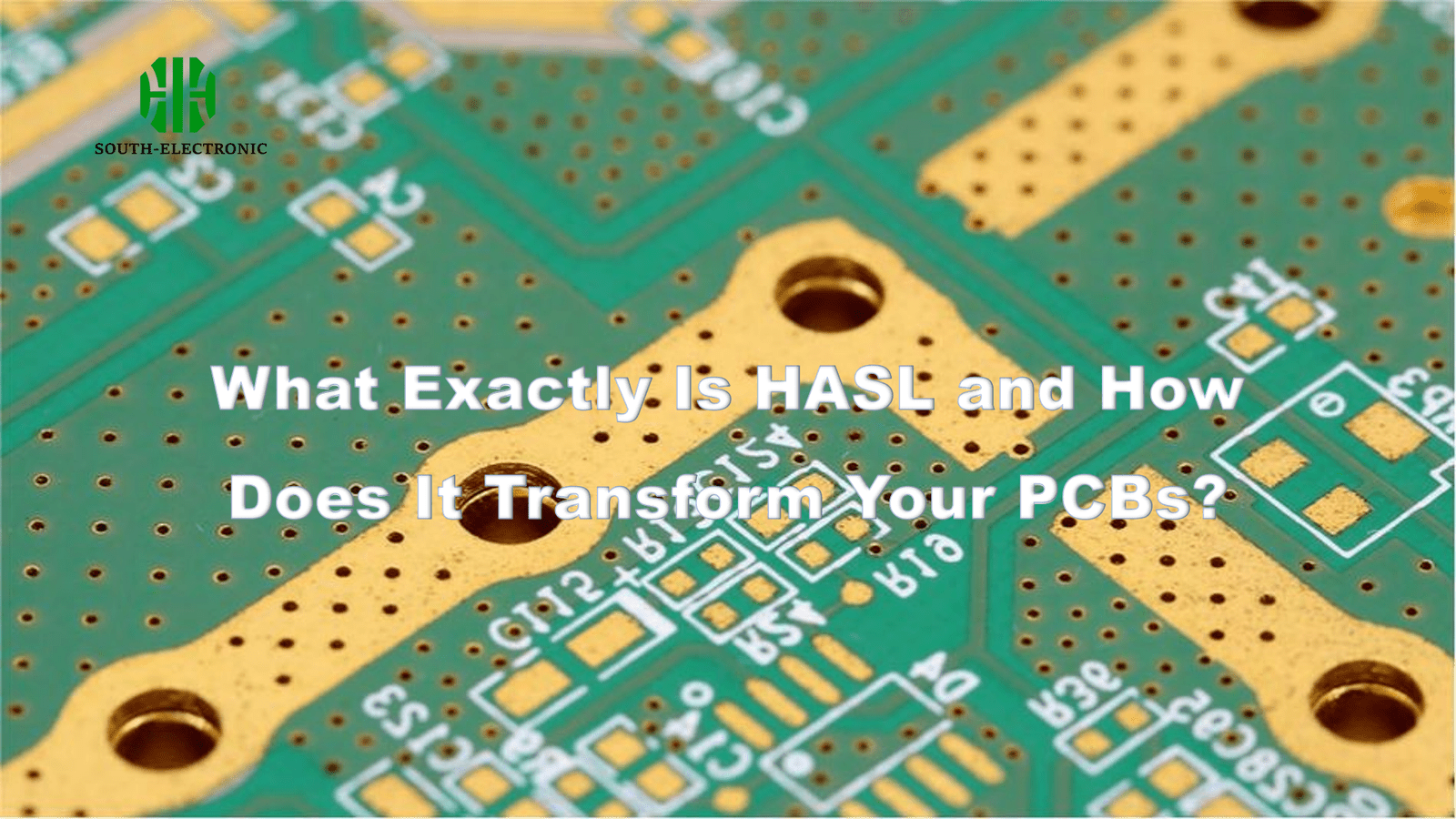

Your PCBs face oxidation risks daily. This threatens their lifespan and functionality. HASL finish[^1] solves this problem effectively. It gives dependable copper protection.
**HASL transforms PCBs by coating them with molten solder smoothed by hot air. This barrier prevents oxidation while improving solder joints. I trust this finish for cost-effective reliability in basic electronics work.
Though valuable, HASL has critical limitations[^2]. Understanding them prevents project failures. Let’s examine where this finish struggles today.
5 Critical Drawbacks of HASL You Can’t Ignore in Modern Electronics?
Modern electronics use tiny components. HASL can fail these demanding applications. Five key flaws demand careful consideration.
HASL creates uneven surfaces and thermal stress. These cause defects in dense circuits. Avoid it for fine-pitch components under 0.5mm.
Key HASL Problems Explained
| Issue | Impact | Severity |
|---|---|---|
| Surface Irregularities | Soldering difficulties | High ●●●●○ |
| Thermal Shock | Thin PCB warping | Medium ●●○○○ |
| Lead-Toxicity Options | Environmental regulations | Medium ●●●○○ |
| Flatness Requirements | BGA component failures | High ●●●●○ |
| Solder Mask Challenges | Reduced adhesion areas | Low ●●○○○ |
HASL gives inconsistent coating thickness. The hot dip process differs across boards. Thick spots create uneven soldering surfaces. This causes problems with small chips. Thermal stress is another risk. PCBs experience rapid temperature changes during coating. Thin boards may warp during cooling. Such warping ruins component alignment.
Lead-free HASL exists but costs more. I always confirm material regulations beforehand. Fine-pitch components under 0.5mm spacing struggle with HASL’s unevenness. Ball grid arrays lose connection reliability. Even my Hoboken soccer team's scoreboard failed due to HASL-caused open circuits. Also, thick solder makes adjacent solder mask peel off over time. HASL soccer gear timers constantly face this peeling issue.
When Should You Choose HASL Over ENIG？
ENIG finish costs considerably more than HASL. Pick HASL when budgets restrict choices. Some projects only need basic protection.
HASL suits rigid boards with larger components. ENIG fits complex designs better. Analyze your board density first.
HASL vs ENIG Selection Guide
| Factor | HASL Finish Choice | ENIG Finish Choice |
|---|---|---|
| Project Budget | Best for tight budgets | Avoid - costs 40%+ more |
| PCB Complexity | Simple boards only | Essential for multilayers |
| Component Size | Works with 0603 or larger | Required for micro components |
| Turnaround Time | Good - 1-3 days process | Poor - 5+ days typical |
| Reliability Needs | Moderate environments | Severe temperature/humidity |
Price differences matter greatly. HASL often costs under 50% of ENIG. Simple designs gain minimal advantages from pricier ENIG. Consider HASL for control boards in washing machines or basic chargers.
Delivery speed favors HASL too. Average production takes just two days. ENIG needs chemical processing steps. I’ve switched last-minute Hoboken soccer tournament displays to HASL for faster delivery. However, high-density designs over 8 layers need ENIG’s flatness. Tiny components like 01005 chips require ENIG. Harsh environments demand ENIG’s corrosion resistance. Never choose HASL for automotive or marine applications.
Beyond HASL & ENIG: Are OSP or Immersion Silver Better For Your Project?
OSP[^3] and Immersion Silver[^4] are emerging alternatives. Each serves unique niche applications. Know their strengths and weaknesses.
OSP is cheaper than even HASL. But limited shelf life hurts storage. Immersion Silver falls between HASL and ENIG[^5]. Good option for medium requirements.
Alternative Finish Comparison Matrix
| Type | Cost Index | Solderability | Ideal Use | Key Risk |
|---|---|---|---|---|
| OSP | $ (Lowest) | ★★☆☆☆ | Quick-turn prototypes | Scratch vulnerability |
| Immersion Silver | $$$ (Medium) | ★★★★☆ | RF applications | Tarnishing issues |
| HASL | $$ (Low) | ★★★☆☆ | Budget consumer goods | Thermal deformation |
| ENIG | $$$$ (High) | ★★★★★ | Medical/space equipment | Black pad failure |
OSP applies organic coating over copper. This is extremely affordable. Prototypes benefit when cost matters most. However, OSP degrades in humidity. Shelf life rarely exceeds six months. Scratching exposes copper easily.
Immersion Silver gives excellent conductivity for RF designs like antennas. Our HASL soccer event transmitters shifted to Silver recently. It handles mid-frequency signals better than HASL. Downsides exist. Silver reacts with sulfur in the air. This creates surface tarnishing over time. Assembly needs nitrogen environments for best results. Reflow soldering must happen soon after fabrication.
Conclusion
HASL delivers cost-effective PCB protection for basic designs. Understand limitations like unevenness before selecting. Alternative finishes solve specific advanced needs uniquely.
