Your electronics keep failing from dust and humidity. Frustrating right? PCB potting provides a simple fix. It shields vulnerable boards so they last longer.

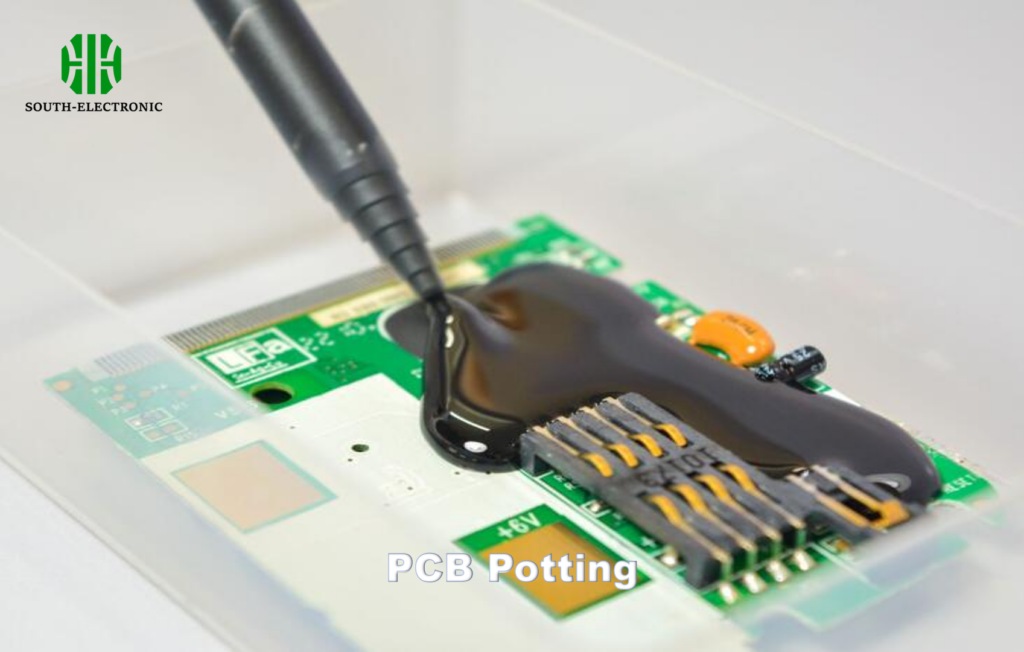

PCB potting[^1] is where circuit boards get sealed inside protective resin or silicone. It blocks hazards like moisture, dust, or vibration. This makes your electronics tougher in harsh places.

What is the Purpose of Potting in Electronics?

Potting seems straightforward, but there’s more to it. I learned the hard way when my prototype failed in damp weather. Let’s explore key questions together.

What are the benefits of potting?

Dropped your gadget in water? Repair costs hurt. Potting prevents these shocks. It acts like armor for delicate parts.

Key benefits include impact resistance and weatherproofing. It also stops electrical shorts and stops corrosion. Potting simplifies designs by replacing bulky cases!

Potting improves reliability, especially outdoors. Let me break down why:

Environmental Protection

Resin seals components from liquids or debris. I once tested potting outdoors – zero damage after storms.

Threat Potting Solution Effect
Moisture Waterproof barrier Stops rust and short circuits
Dust Complete encapsulation Prevents clogging in moving parts
Temperature Thermal-resistant resins Reduces heat stress cracks

Mechanical Stability

Circuit boards wobble and break during movement. Potting glues parts together firmly. Your phone’s drop survival? Thank internal potting-like techniques.

Long-Term Savings

Fix costs add up fast. Potting cuts failures. One automotive client slashed warranty claims by 70%. That’s real money saved!

Is potting the same as conformal coating[^2]?

Both protect circuits, but confusion costs time. I once mixed them up – project delayed! Know the difference to pick wisely.

No, potting fully submerges the PCB while coating sprays a thin film. Potting offers stronger defense but adds bulk. Coating is lighter for tight spaces.

PCB coating

Let’s compare uses and limits:

Application Methods

Potting pours thick resin around everything. Like freezing parts in clear ice. Conformal coating sprays a micron-thin layer. Think of waterproof paint.

Feature Potting Conformal Coating
Thickness 2-10mm 0.05-0.5mm
Weight Change Heavy Light
Reusability Permanent Removable with solvents

Best Uses

Use potting for marine gear or heavy machinery. Coating suits phones or drones where weight matters. My drone project failed with potting – too heavy to fly!

Limitations

Potting makes repairs impossible unless you melt resin. Coating wears off rapidly in sandy areas. Always test small samples first.

What is the alternative to potting electronics?

Potting isn’t always practical. My smartwatch design was too small. Luckily, options exist with similar results.

Encapsulation or silicone pads[^3] are top alternatives. They shield critical sections only. This balances cost, weight, and protection.

When to skip full potting? Here’s the breakdown:

Encapsulation

Seals fragile chips alone, not whole boards. Uses glue-like compounds. Saves 50% material cost versus potting but covers less area.

Silicone Pads

Soft shields absorb shocks without sealing. Great for sensors in dry zones. My garden sensor used pads – it’s survived two winters.

Hybrid Approaches

Combine methods strategically. Example:

  • Coat the main PCB first.
  • Add silicone near connectors.
  • Pot only power modules.

Conclusion

PCB potting shields electronics from weather hits and shocks. Choose methods by your device’s surroundings. Try small tests first!
