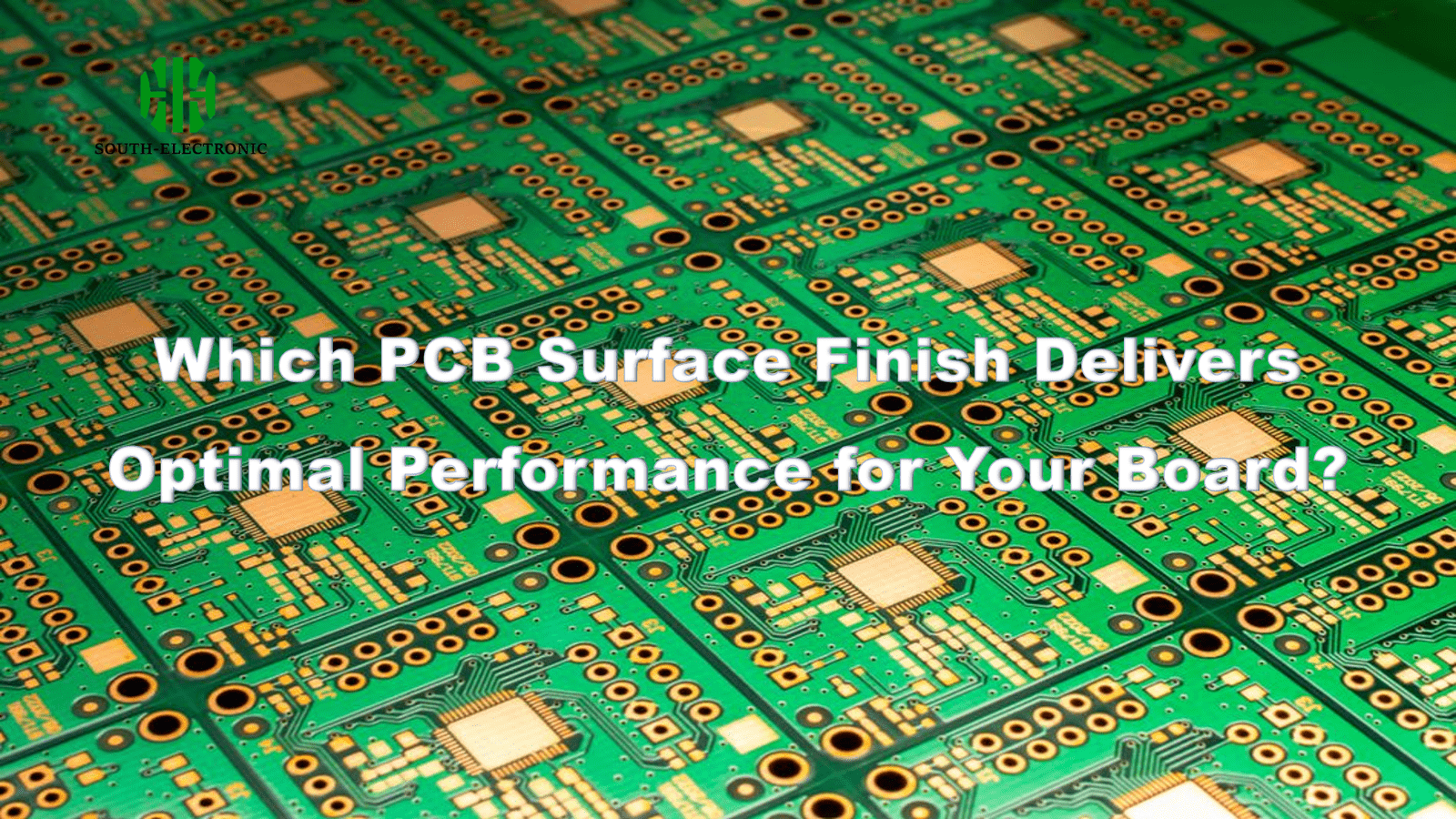

Choosing the wrong PCB surface finish[^1] can lead to signal loss, poor solder joints, and field failures. With 8 common options available, engineers often struggle to balance performance with manufacturing realities.
The ideal PCB surface finish depends on your application's frequency, environmental factors, and budget. While ENIG[^2] offers superior reliability for complex boards, immersion silver excels in high-frequency designs, and lead-free HASL remains cost-effective for automotive controls.
To make informed decisions, we need to examine how different finishes perform under specific operational demands. Let's analyze three critical scenarios engineers face today.
HASL vs ENIG vs OSP: Which Finishing Offers Better Solderability?
Solderability issues account for 43% of PCB rework costs. The choice between these finishes directly impacts your production yield and long-term reliability.
HASL provides the easiest solderability[^3] with its thick lead-free coating, while ENIG maintains consistency for fine-pitch components. OSP requires precise process control but offers pure copper compatibility for high-frequency signals.
Critical Factors in Solder Joint Formation
Thermal endurance comparison:
| Finish | Peak Reflow Temp | Dwell Time Tolerance | Flux Compatibility |
|---|---|---|---|
| Lead HASL | 265°C ±10°C | 45-90 seconds | Standard ROSH |
| ENIG | 280°C ±5°C | 30-60 seconds | No-clean required |
| OSP | 250°C ±8°C | 15-30 seconds | Aggressive fluxes |
HASL's pre-tinned surface allows wider process windows for high-volume manufacturing. I once saw a medical device project switch from OSP to ENIG after failed soldering – the nickel layer provided necessary thermal buffering for their complex BGA components. ENIG's flat surface enables precise solder paste deposition, crucial for 0.4mm pitch QFNs.

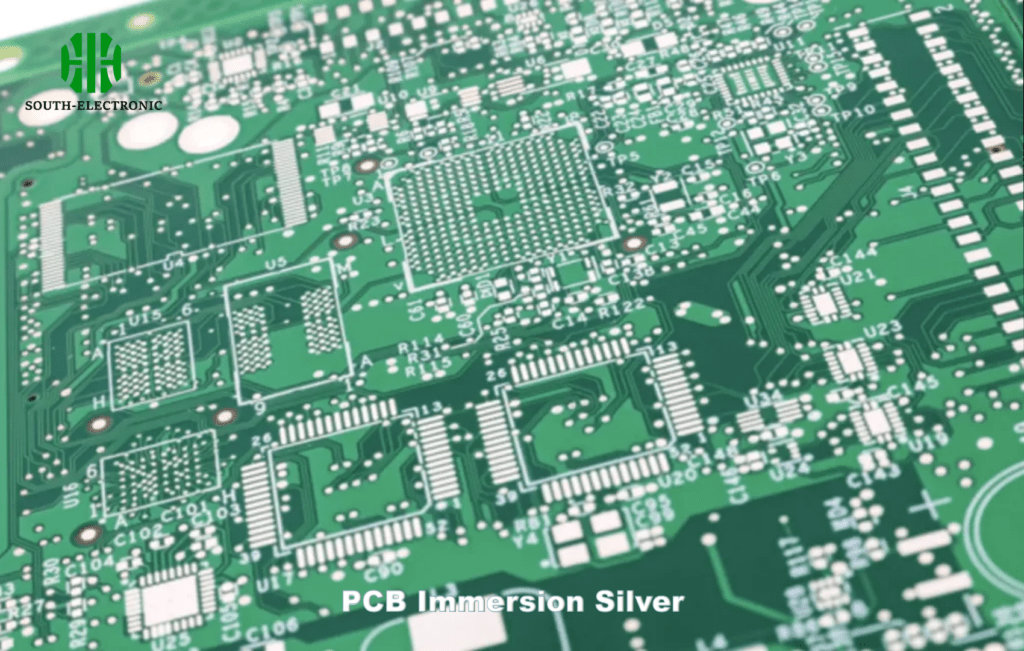

How Does Immersion Silver Prevent Signal Loss in High-Frequency PCBs?
5G antennas and radar systems demand surface finishes that don't interfere with signals above 10GHz. Traditional finishes create unexpected impedance changes.
Immersion silver[^4]'s 0.12-0.25μm ultra-thin coating maintains consistent dielectric properties across GHz frequencies. Its smooth surface reduces skin effect losses compared to rougher ENIG finishes.
Signal Integrity Optimization Strategies
Surface roughness impact at 28GHz:
| Finish | Ra (μm) | Insertion Loss (dB/cm) |
|---|---|---|
| Immersion Ag | 0.15 | 0.38 |
| ENIG | 0.35 | 0.57 |
| OSP | 0.08 | 0.41 |
While OSP provides the smoothest surface, its organic composition degrades faster in humid environments. Immersion silver's 6-month shelf life beats OSP's 3-month window. For a satellite comms project, we achieved 18% lower signal attenuation by switching from ENIG to immersion silver – critical for maintaining link budgets.
Is Lead-Free HASL Reliable for Automotive Electronics Manufacturing?
Automotive PCBs endure -40°C to 150°C thermal cycling while resisting vibration and chemical exposure. Cost pressures drive manufacturers toward HASL despite its perceived limitations.
Modern lead-free HASL[^5] (Sn96.5/Ag3.0/Cu0.5) passes AEC-Q100 testing when properly applied. Its 1-3μm coating thickness protects copper better than OSP in underhood environments.
Thermal Cycling Performance Data
Test results (1500 cycles -40°C to +125°C):
| Finish | SIR (Ω) After Test | Dendrite Growth | IST Pass Rate |
|---|---|---|---|
| LF HASL | 5.8×10⁹ | None observed | 92% |
| ENIG | 2.1×10¹⁰ | Slight Ni-Sn | 97% |
| Immersion Sn | 4.3×10⁸ | Significant | 83% |
An automotive client reduced costs 22% using LF HASL instead of ENIG for body control modules. Key was implementing nitrogen reflow to minimize oxidation – their initial 5% defect rate dropped to 0.8% after process optimization. Thickness control remains critical – we measure HASL coatings every 30 minutes during production runs.
Conclusion
Select surface finishes based on electrical needs, environmental stress, and assembly capabilities. ENIG suits complex boards, immersion silver optimizes RF performance, while modern HASL satisfies automotive budgets when process-controlled rigorously.
