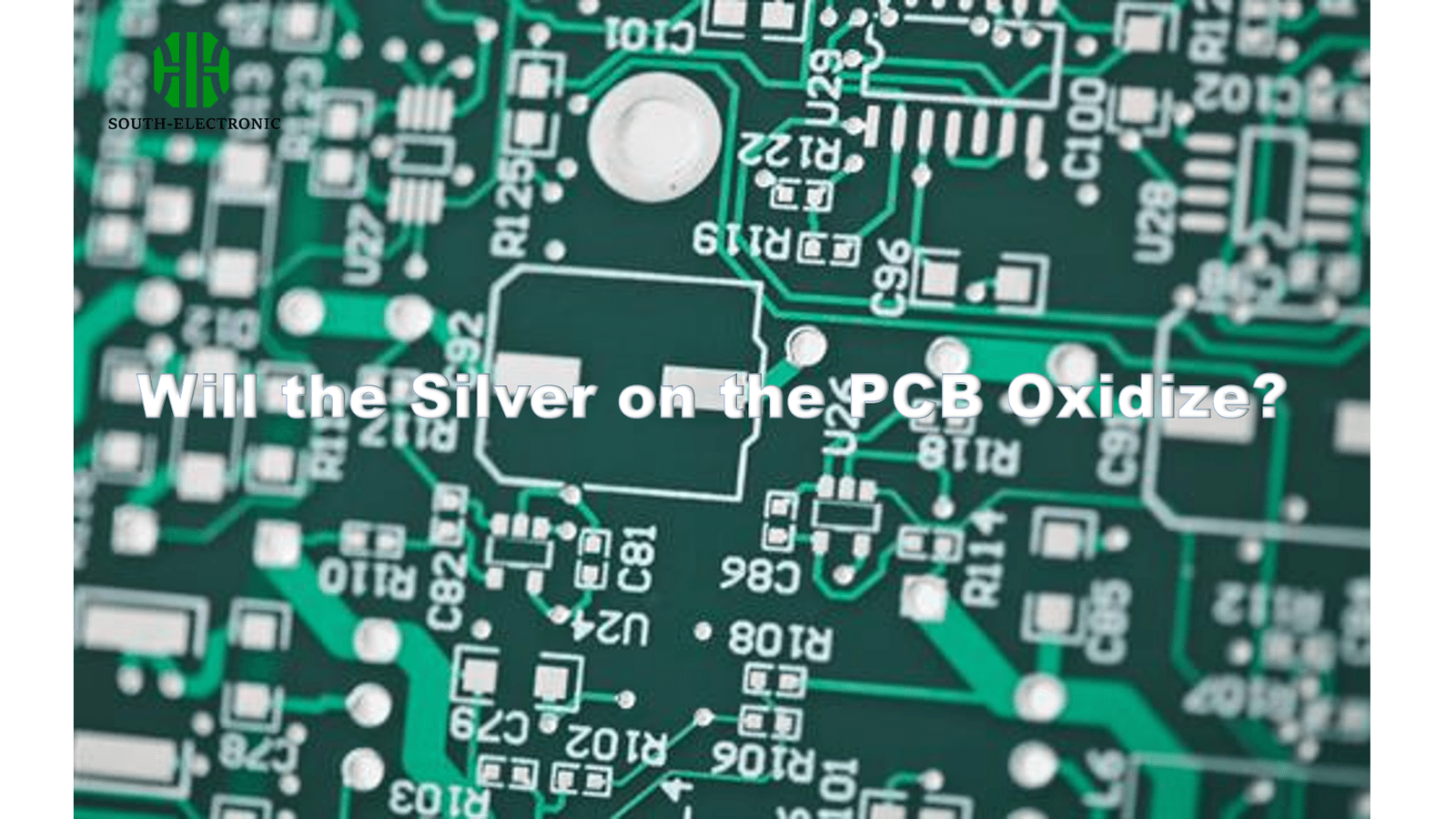

Open your failed PCB, and you’ll find blackened silver traces. Oxidation silently sabotages electronics. Let’s decode why silver tarnishes and how to stop this stealthy killer.
Yes, silver on PCBs oxidizes when exposed to sulfur or moisture, forming non-conductive silver sulfide[^1]. Prevent it using anti-tarnish coatings[^2], proper storage under 40% humidity, and replacements like ENIG plating for mission-critical applications.
Silver’s reactivity isn’t a death sentence. Below are proven strategies I’ve tested to combat oxidation during prototyping and mass production – including a shockingly simple storage trick doubling shelf life.

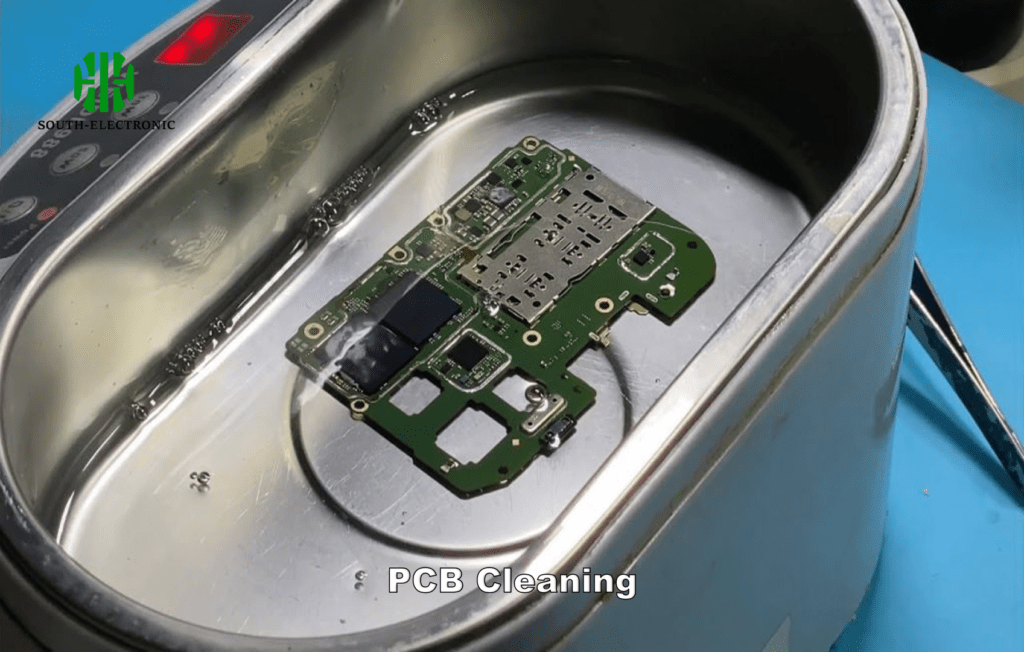

How to Remove Oxidation from PCB?
Scraping silver oxide with a knife? Stop. Aggressive methods damage delicate traces. Use science-backed cleaning instead.
Dissolve silver sulfide with 5% citric acid solution or commercial contact cleaner. For heavy corrosion, combine ultrasonic cleaning[^3] (40kHz) with 70% isopropyl alcohol. Always dry boards at 60°C within 15 minutes post-cleaning.
)
Three-Tiered Oxidation Removal Strategy
| Severity | Method | Risk | Time |
|---|---|---|---|
| Mild (Surface Discoloration) | Isopropyl alcohol wipe | Low | 2 mins |
| Moderate (Partial Conductivity Loss) | Citric acid dip (30 sec) + DI rinse | Medium | 10 mins |
| Severe (Blackened Traces) | EDTA-based chemical bath (50°C) | High | 20 mins |
Critical considerations:
- Acid concentration control: Over 8% citric acid etches copper underlayers
- Temperature: Every 10°C increase doubles cleaning speed but accelerates base material degradation
- Neutralization: Baking soda solution (pH 8-9) must follow acidic treatments to prevent latent corrosion

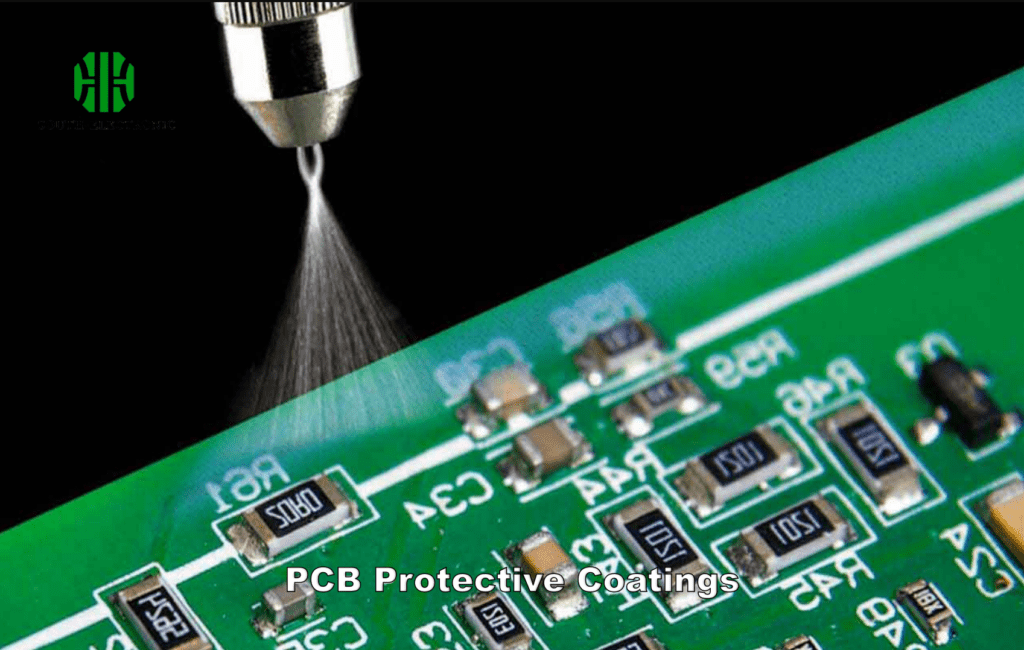

How Do You Save Silver from Oxidation?
Sealing silver in argon gas isn’t practical. Real-world solutions balance cost and effectiveness.
Apply Gutmann’s anti-tarnish film[^4] (0.3μm thickness) or use nitrogen-purged packaging with oxygen scavengers. For assembled boards, Dow Corning 1-2577 conformal coating blocks 94% of sulfur penetration at 85% RH.
)
Oxidation Prevention Matrix
| Method | Cost ($/m²) | Effectiveness | Duration |
|---|---|---|---|
| Bare silver | 0 | 0% | 0 months |
| Benzotriazole dip | 1.2 | 78% | 6 months |
| Silicone conformal coat | 4.7 | 94% | 24 months |
| ENIG replacement | 18.9 | 100% | Permanent |
Key implementation tips:
- Coating compatibility: Silicone coatings reduce solderability – mask contact areas
- Accelerated testing: 24hrs in 10ppm H₂S chamber simulates 2-year tarnishing
- Reworkability: Removable coatings like acrylics simplify repairs but offer weaker protection

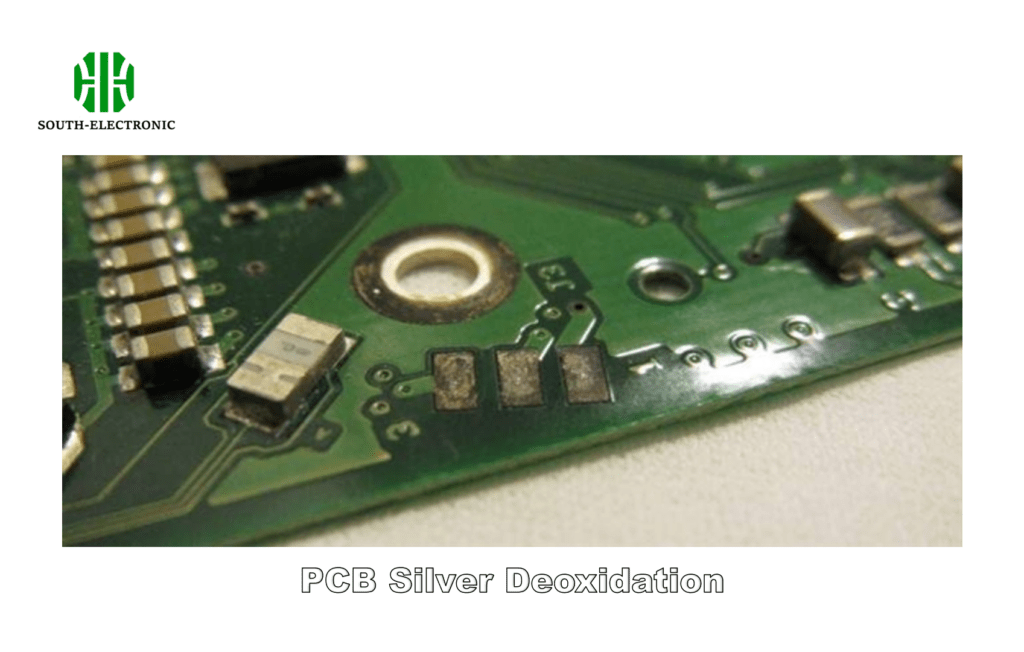

What is the Best Way to Deoxidize Silver?
Forget toothpaste hacks. Precision de oxidation requires understanding surface chemistry.
Electrochemical reduction[^5] outperforms chemical methods. Use 0.1M sodium citrate solution[^6] at 1.5V DC (carbon electrode) for 90 seconds. Restores 98% conductivity vs new silver with zero material loss.
)
De oxidation Methods Compared
| Technique | Conductivity Recovery | Surface Damage | Equipment Cost |
|---|---|---|---|
| Mechanical abrasion | 45-60% | High | $10 |
| Commercial silver dip | 75% | Medium | $25 |
| Formic acid vapor | 88% | Low | $1,200 |
| Electrochemical (This guide’s method)[^7] | 98% | None | $50 |
Critical parameters:
- Voltage precision: >2V causes silver dissolution
- Solution pH: Maintain 4.5-5.0 with citric acid buffer
- Current density: Optimal at 0.8mA/mm² – measure active area first
Note: Never use chloride-containing solutions (accelerates future corrosion)

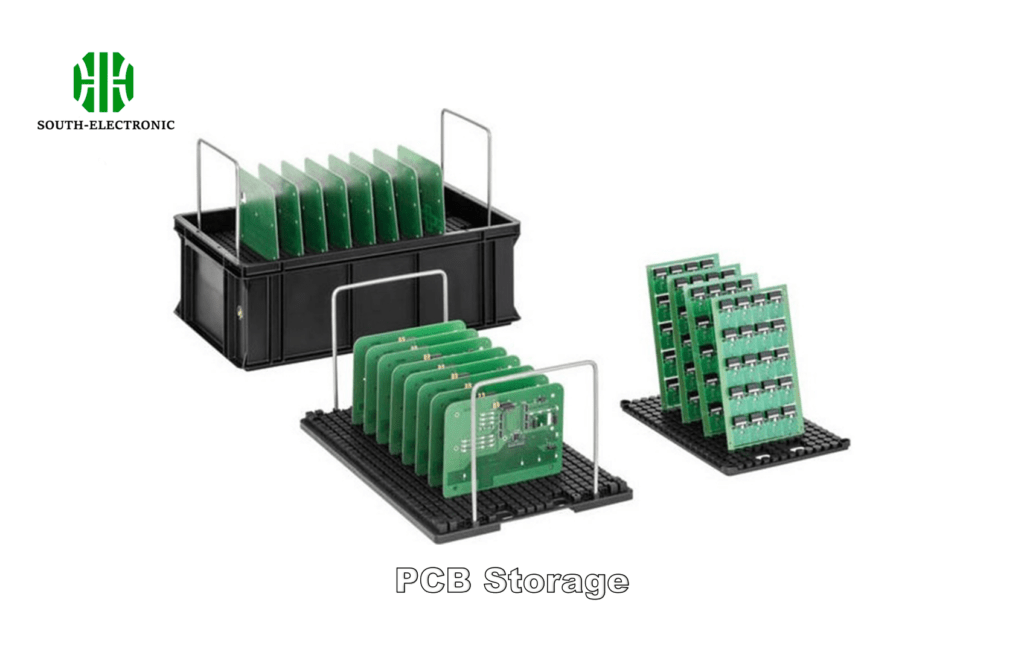

What is the Shelf Life of Immersion Silver PCB?
Your "6-month" silver PCBs failed in 8 weeks? Shelf life isn’t fixed – it’s engineered.
Unprotected immersion silver PCBs last 3-6 months in tropical climates (30°C/85% RH). With desiccant-packed moisture barrier bags and O₂ absorbers, shelf life[^8] extends to 18-24 months.
)
Shelf Life Extension Formula
| Factor | Improvement | Cost Impact |
|---|---|---|
| Baseline (Open air) | 3 months | $0 |
| + Anti-tarnish coating[^9] | +3 months | +$0.8/board |
| + Dry cabinet (10% RH) | +6 months | +$1.2/board |
| + Nitrogen flush packaging | +12 months | +$2.5/board |
Experimental data highlights:
- Failure mode: >200Ω/square resistance increase = endpoint
- Accelerated aging: 85°C/85% RH for 96hrs ≈ 6 months natural aging
- IQC check: Use 5% sodium sulfide solution spray – tarnish within 2mins indicates poor coating
Conclusion
Protect silver PCBs with conformal coatings and proper storage. For harsh environments, switch to ENIG or gold plating. Clean corrosion promptly using electrochemical methods – never compromise on conductivity.
