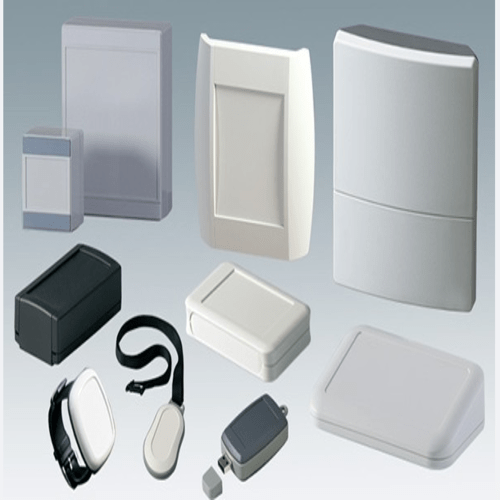

Plastic Enclosure
Lightweight and budget-friendly, these enclosures are perfect for consumer electronics and other applications where durability is less critical. They offer flexibility in design and are easy to customize, making them popular for general-purpose devices.

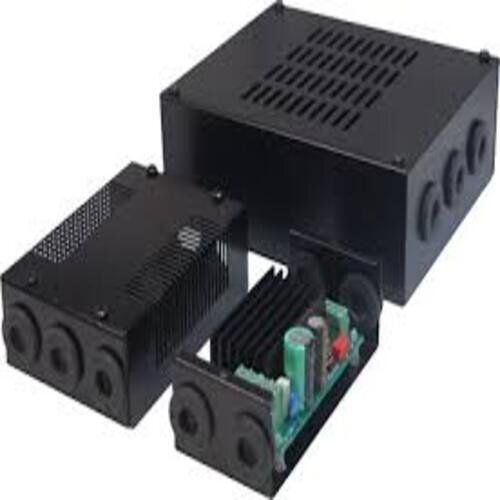

Metal Enclosure
Known for their strength and durability, metal enclosures are ideal for industrial use where mechanical protection and EMI/RFI shielding are essential. They withstand rough handling and offer long-lasting security for sensitive electronics.

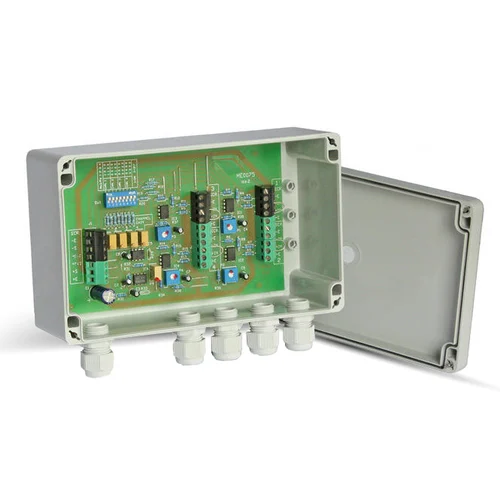

Waterproof Enclosure
Built for outdoor or harsh environments, these enclosures provide robust protection against water, dust, and other environmental elements. They’re an excellent choice for applications requiring reliable performance in extreme conditions.

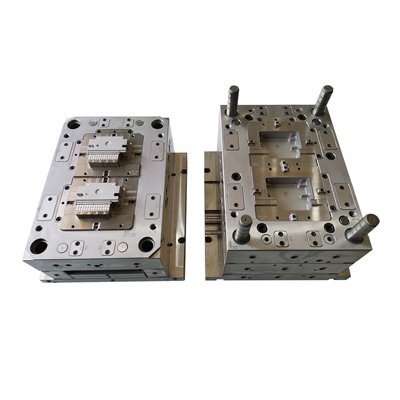

Custom Enclosure
Fully customizable, these enclosures are designed to meet specific project needs with precise dimensions, custom cutouts, and specialized features, ensuring a perfect fit for unique applications.
Why Choose South-Electronic?
At South-Electronic, we understand the critical importance of precise solutions for your PCB Enclosures. We lead in PCB innovation, offering unmatched customization and accuracy to fulfill your specific needs. Our focus is on delivering technical superiority and solutions that ensure project success.
- Precision and Quality
Your project deserves nothing but the highest standards.
At South-Electronic, we ensure precision and reliability in everyPCB Enclosure we produce, guaranteeing that your products are flawless and perform exactly as expected. - Flexible Customization
Enjoy the flexibility of ordering from MOQ 1pc, tailored to your specific needs.
Whatever your needs are, you can scale your orders with flexibility, all while maintaining uncompromising quality. - Fast Turnaround
We understand that time is crucial for your business.
That’s why our highly efficient production lines ensure you receive your orders quickly, helping you stay ahead of your deadlines and keep your projects on track. - Experienced Team
When you work with us, you're supported by a team with years of experience in PCB assembly.
You’ll benefit from the confidence of working with professionals who understand your industry and know how to meet your specific needs. - One-Stop Solution
From initial design to final assembly, we take care of every step in the process.
With us, you get the convenience of a full-service partner who can handle all your PCB needs seamlessly, giving you peace of mind and simplifying your workflow.

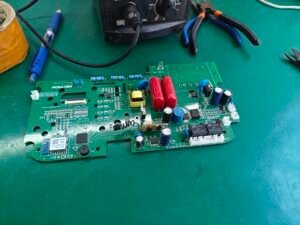

Related Project We had Done
Customer Reviews
engineer
thank you, guys, the boards are really good, i am really happy to receive my boards, the components are perfect!
Operation Manager
South-Electronic is my first PCBA supplier in China. The service and quality are excellent, and the after-sales support is also very impressive. Good Job!
Common Questions
Most Popular Questions
South-Electronic offers various enclosure types, including plastic, metal, waterproof, and fully customizable options to suit specific application needs.
South-Electronic holds multiple industry-standard certifications that guarantee quality and reliability, providing peace of mind for all customers.
Customization options include tailored sizes, materials, colors, and functional designs, allowing each enclosure to meet exact project specifications.
Yes, South-Electronic provides rapid prototyping and small batch production options to cater to unique and time-sensitive project needs.
Absolutely. South-Electronic’s enclosures can be designed with EMI/RFI shielding features to protect against electromagnetic and radio frequency interference.
Send us a message
The more detailed you fill out, the faster we can move to the next step.
The Complete Guide For PCB Enclosure
Contents
Chapter 1
What is PCB Enclosure?
A PCB enclosure is a special case that houses PCBs to protect them from various external factors. These enclosures are built to fit the dimensions and mounting specifications of the PCB and are typically made from durable materials like plastic, metal, or composites. By shielding the sensitive circuitry from dust, moisture, accidental impacts, and static, a PCB enclosure extends the lifespan of the board and prevents potential malfunctions. PCB enclosures are tailored to meet the needs of different environments, whether they are consumer devices, industrial machines, or outdoor installations.
PCB enclosures are essential for maintaining the functionality, reliability, and longevity of electronic components. They provide a physical barrier that not only protects the PCB from environmental hazards but also supports safe handling and transport. For example, enclosures with waterproof or dustproof features (often rated by IP standards) can be critical in industrial or outdoor settings where moisture and particulates are common. Additionally, enclosures designed with EMI/RFI shielding prevent electromagnetic interference, which is crucial for sensitive electronics like medical or communication devices.
In addition to protection, PCB enclosures contribute to thermal management, preventing overheating through ventilation or integrated heat sinks, which ensures stable operation. They also allow for customization in design, enabling manufacturers to align the enclosure with aesthetic or functional requirements of the device, such as color, shape, or branding elements. Overall, PCB enclosures are essential components in electronic devices, providing necessary support and protection for optimal device performance in a wide range of applications.
Chapter 2
Types of PCB Enclosures
There are a bunch of different types of enclosures that people use for printed circuit boards (PCBs). Each one has its own pros and cons, depending on things like how durable it is, how much it costs, and what you need it to do. The most common types are plastic enclosures, metal enclosures, waterproof enclosures, and custom enclosures.

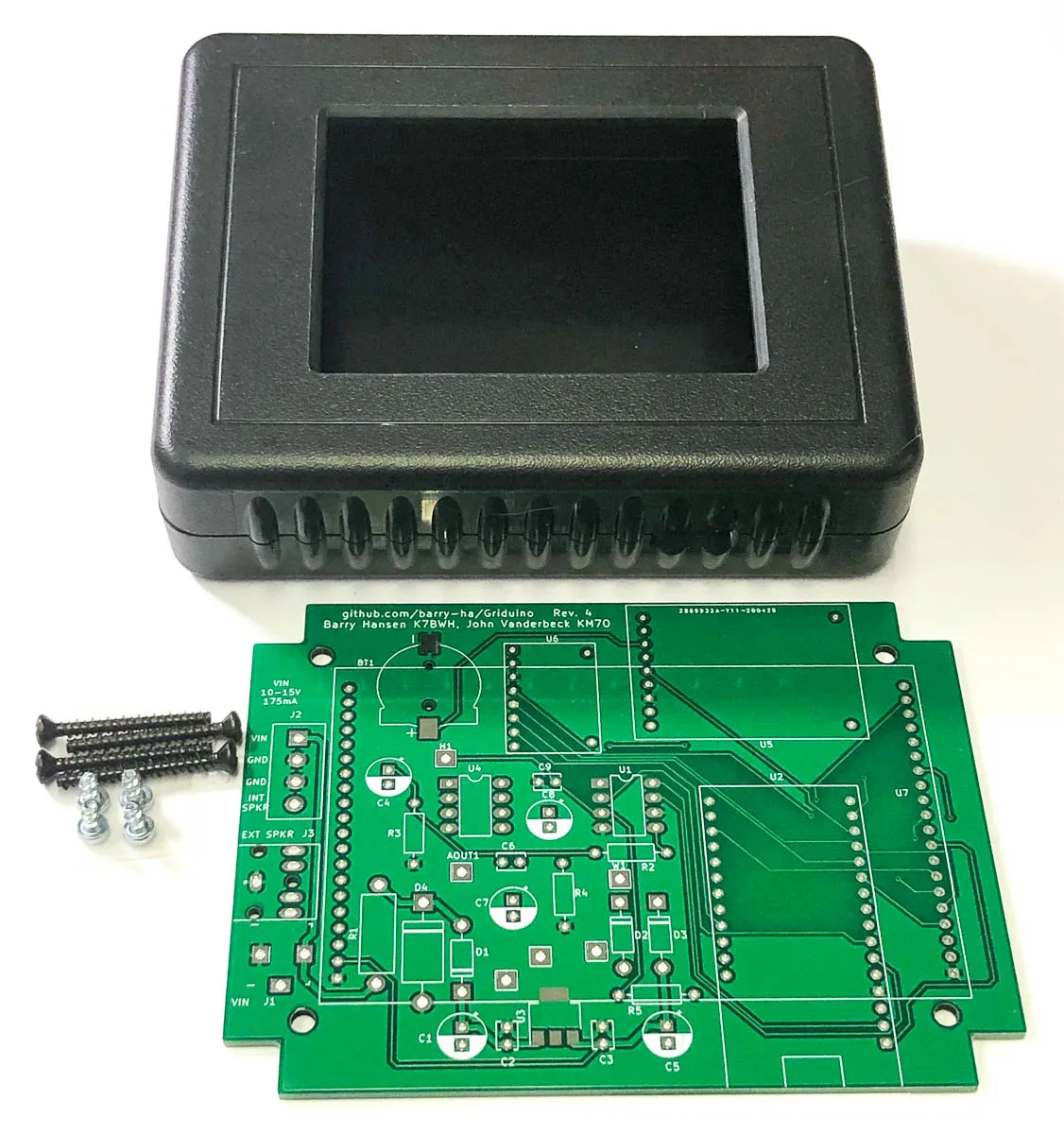

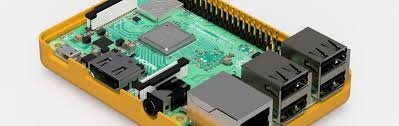

1. Plastic Enclosures

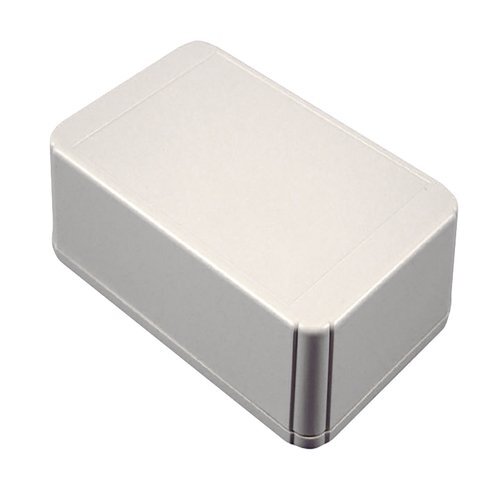

Plastic enclosures are usually the cheapest option. They do a good job of protecting your PCB from dust, dirt, and light impacts. They’re lightweight, easy to make, and can be molded into all kinds of shapes and sizes to fit whatever you’re working on. The downside is that plastic enclosures don’t protect against high heat or hard impacts as well as metal ones do. They also tend to wear out faster, especially if you’re using them outside or in a tough environment.
2. Metal Enclosures
Metal enclosures are made out of aluminum, steel, or some other kind of metal. They’re super strong and durable. They protect your PCB from getting damaged, and they also help keep out electromagnetic interference (EMI) and electrostatic discharge (ESD). That makes them great for sensitive stuff or for industrial applications. Metal enclosures can also handle high temperatures, which is important if you’re working with something that gets really hot. The downside is that metal enclosures are heavier and more expensive than plastic ones. Sometimes you have to do extra stuff to them, like powder coating or anodizing, to keep them from rusting or corroding.

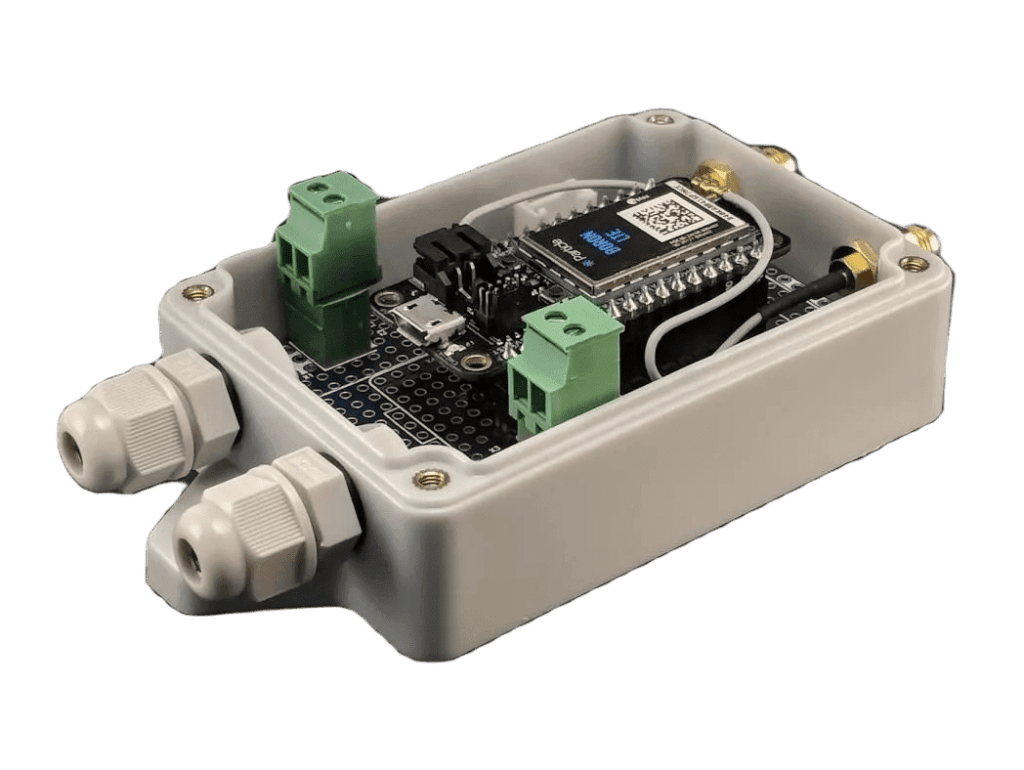

3. Waterproof Enclosures

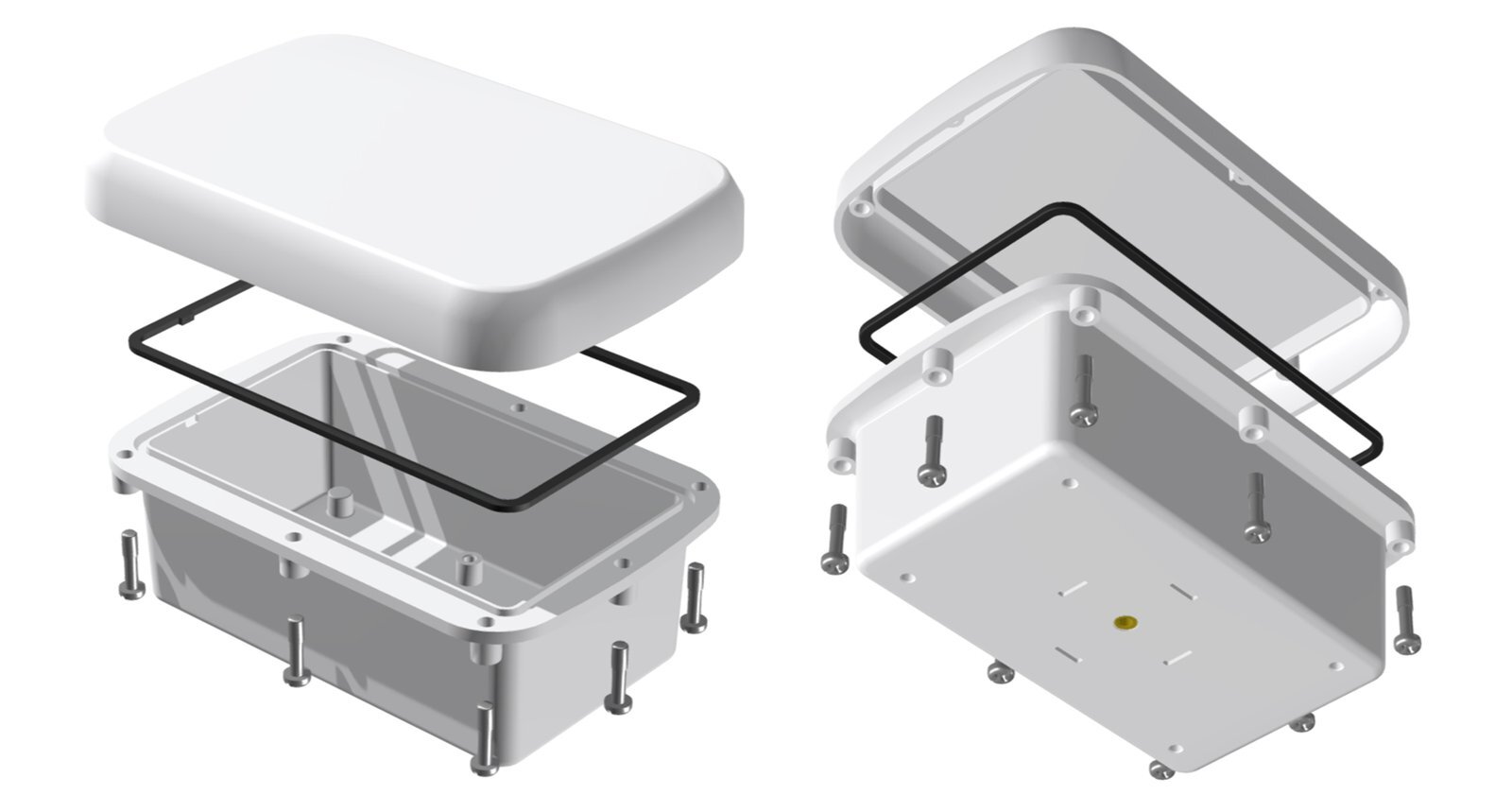

Waterproof enclosures are made to keep water and moisture away from your PCB. They’re good for outdoor stuff or for things that get wet or damp. They usually have seals or gaskets to keep water and dust out. They also have ratings, like IP65 or IP67, that tell you how well they keep stuff out. Waterproof enclosures are great for tough environments, but they can be more expensive than regular plastic or metal enclosures. Also, the seals can wear out over time, so they might not be as waterproof as they used to be.

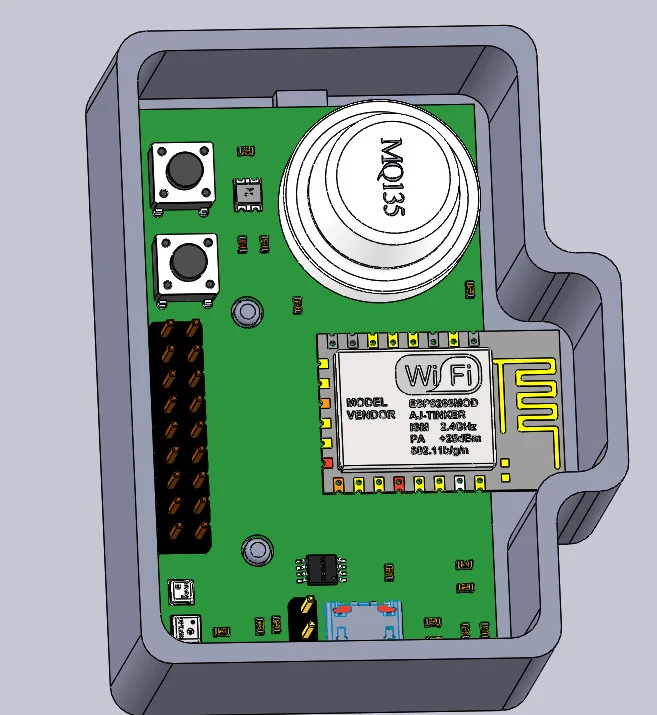

4. Custom Enclosures
Custom enclosures are made to fit your specific needs. They’re made out of different materials, and they’re designed to fit your PCB layout or whatever else you need them to do. They can be made out of plastic, metal, or a mix of both. They can have extra stuff, like built-in heat sinks or special ways to mount them. Custom enclosures are the most flexible and the most protective, but they’re also the most expensive. You have to do special design and manufacturing stuff to make them.
Each type of enclosure has its own benefits. Which one you pick depends on what you’re doing, where you’re doing it, how much money you have, and how much protection you need.
Chapter 3
Advantages of PCB Enclosures
PCB enclosures are essential for protecting printed circuit boards (PCBs) and ensuring the longevity and proper functioning of electronic devices. They offer a range of benefits, each critical for different applications, and can significantly improve the performance and reliability of electronic systems. Some of the key advantages of PCB enclosures include:
Protection Against Physical Damage
One of the most important functions of a PCB enclosure is to protect the circuit board from physical damage. Enclosures shield the PCB from impact, abrasion, and other forms of mechanical stress. This is especially important in environments where the equipment is prone to being dropped, bumped, or subjected to vibrations, such as industrial settings or handheld devices. Without a proper enclosure, even small physical damages can cause shorts, broken components, or malfunctioning parts, compromising the entire device.Environmental Protection
PCB enclosures provide protection against environmental factors such as moisture, dust, and dirt. In many industries, particularly in outdoor or rugged applications, exposure to these elements can cause corrosion, rust, or failure of sensitive components. Enclosures that are rated for high levels of ingress protection (IP) can prevent water, dust, and chemicals from damaging the PCB. This is especially critical in electronics used in automotive, aerospace, or marine environments.Electromagnetic Interference (EMI) Shielding
Metal enclosures, in particular, offer excellent protection against electromagnetic interference (EMI). EMI can disrupt the normal operation of sensitive electronics, leading to data corruption, signal loss, or reduced performance. A well-designed PCB enclosure can provide a barrier against both incoming and outgoing EMI, ensuring that the device operates without interference from other electronic equipment or external sources of electromagnetic radiation.Thermal Management
PCB enclosures can help manage the heat generated by electronic components, which is essential for preventing overheating. Many enclosures, especially those made of metal, provide better heat dissipation through conduction, convection, and radiation. This helps maintain optimal operating temperatures for the PCB, preventing thermal damage to components and ensuring long-term reliability. In high-performance applications like power supplies, computer servers, or automotive electronics, efficient thermal management is crucial for system stability and performance.Aesthetic Appeal and Branding
Enclosures not only serve functional purposes but also contribute to the aesthetic design of the final product. The outer casing of the enclosure can be customized in terms of color, texture, and shape, which can enhance the product’s appearance and appeal. For consumer products, having an attractive enclosure is important for marketing and brand recognition. Custom enclosures can be designed to match a company’s branding, creating a distinctive look that aligns with the product’s identity.Ease of Assembly and Maintenance
Enclosures can simplify the assembly and maintenance of electronic devices. By housing the PCB in a pre-designed enclosure, manufacturers can ensure that the PCB and its components are securely mounted and easily accessible for future repairs or upgrades. Additionally, many enclosures are designed for easy opening and closing, allowing technicians to inspect, replace, or modify parts without damaging the internal components. This makes servicing and troubleshooting much easier, especially for complex systems.Compliance with Industry Standards
Many industries require specific certifications for electronic devices, such as IP ratings for dust and water resistance or UL listings for fire safety. PCB enclosures help manufacturers meet these regulatory requirements, ensuring that the device is safe for use in certain environments. Compliance with standards can also improve the overall trust in the product, especially in sectors like medical devices, automotive, and telecommunications, where safety and reliability are paramount.Cost Efficiency
In the long run, investing in a high-quality PCB enclosure can be cost-effective. While custom or specialized enclosures might have a higher upfront cost, they can prevent costly repairs and downtime caused by PCB damage or failure. Furthermore, enclosures that improve the thermal and environmental protection of the PCB can help prolong the life of the entire device, reducing the frequency of replacements or repairs.
In summary, PCB enclosures offer a wide range of benefits, from protecting the circuit board and its components to improving thermal management, ensuring compliance with standards, and enhancing the overall aesthetics of the product. Whether the application is industrial, consumer electronics, automotive, or medical, a well-chosen PCB enclosure can significantly improve the durability, performance, and reliability of the device.
Chapter 4
Applications of PCB Enclosures
Protection from Environmental Factors:
- Dust and Moisture: PCB enclosures guard against contaminants that can damage sensitive electronic components. By preventing dust accumulation and moisture ingress, the enclosures help maintain device functionality and reliability.
- Mechanical Damage: They provide a sturdy barrier that protects the PCB from physical impacts, vibrations, and other mechanical stresses.
Thermal Management:
- Heat Dissipation: Enclosures are often designed with thermal management in mind, incorporating materials and structures that facilitate heat dissipation to prevent overheating of electronic components.
- Cooling Solutions: Many enclosures support passive cooling methods such as heatsinks, or active solutions like fans, ensuring optimal performance.
Durability and Structural Integrity:
- Robustness: PCB enclosures enhance the mechanical strength of electronic devices, making them more durable and less prone to damage during handling or operation.
- Longevity: By offering additional protection, enclosures increase the lifespan of the electronics by safeguarding them from wear and tear.
Electromagnetic Interference (EMI) Shielding:
- Signal Integrity: These enclosures can contain EMI shielding elements, which are crucial for maintaining signal quality by preventing unwanted electromagnetic waves from interfering with the PCB’s operation.
- Regulatory Compliance: Effective EMI shielding helps devices meet regulatory standards for electromagnetic emissions.
Customizability and Versatility:
- Material Choices: Enclosures can be made from a variety of materials, including metals like aluminum or plastics, chosen based on the specific thermal, mechanical, and aesthetic requirements of the application.
- Shape and Size: They can be custom-designed to fit the particular dimensions and configurations of a PCB, accommodating various components and connectors.
- Industry Applications: The adaptability of PCB enclosures makes them suitable for diverse industries, from consumer electronics and telecommunications to automotive and industrial equipment.
Aesthetic and Branding:
- Design Flexibility: Enclosures can be tailored to reflect brand identity through colors, logos, and finishes, enhancing the product’s market appeal.
- User Interface Integration: They can integrate interfaces like screens, buttons, and connectors seamlessly into the device’s design.
By considering these aspects, PCB enclosures not only protect but also enhance the functionality and appeal of electronic devices across a wide range of applications.
Chapter 5
Importance of EMI and RFI Shielding
Explanation of EMI and RFI:
- Electromagnetic Interference (EMI): EMI refers to the disruption caused by electromagnetic fields from external sources affecting electronic circuits. This interference can cause malfunctions or degrade the performance of electronic devices.
- Radio Frequency Interference (RFI): RFI is a specific type of EMI, typically from radio frequency sources. It can impact the operation of receivers and other sensitive electronic components by introducing noise and reducing signal clarity.
Impact on PCB Performance:
- Signal Degradation: EMI/RFI can lead to signal distortion, latency, or loss, negatively affecting the reliability and efficiency of communication and processing tasks.
- Component Malfunction: Excessive interference can cause malfunction or even damage to components on the PCB, leading to increased failure rates and maintenance costs.
- Operational Reliability: Continuous exposure to interference can compromise the operational consistency and accuracy of electronic systems, particularly in mission-critical applications like aerospace and medical equipment.
Shielding Techniques and Materials to Reduce Electromagnetic Interference:
- Conductive Coatings: Applying conductive materials (such as copper, silver, or specialized paints) onto enclosures or PCB surfaces to create a protective barrier against EMI/RFI.
- Metal Enclosures: Using metal casings, often made of aluminum or steel, which inherently block electromagnetic radiation and provide robust shielding.
- Shielding Gaskets: Installing conductive elastomeric gaskets in enclosures can fill gaps that may allow EMI to penetrate, ensuring tight electrical continuity across enclosure seams.
- Ground Planes and Filters: Incorporating ground planes in PCB design and using filters can help decouple circuit paths from interference sources, minimizing the impact of EMI/RFI.
- Faraday Cages: Design enclosures as Faraday cages, which are conductive structures that block external electromagnetic fields, effectively shielding the internal PCBs.
- EMI Shielding Tapes and Fabrics: Tapes and fabrics made with conductive materials can be applied to specific areas for localized EMI control without redesigning enclosures.
- Integrated EMI Filters: Designing the PCB with integrated filters or using external ones can prevent EMI from affecting sensitive circuits by blocking high-frequency interferences.
By employing these techniques and materials, PCB performance can be substantially improved, ensuring reliability and compliance with electromagnetic compatibility standards. This is vital for maintaining device performance in a wide range of environments and applications.
Chapter 6
Design Considerations for PCB Enclosures
Key Design Factors:
Ventilation:
- Thermal Management: Proper ventilation is essential for dissipating heat generated by electronic components. The design should include vents or other cooling mechanisms to ensure efficient airflow.
- Preventing Overheating: By facilitating air exchange, enclosures help maintain ideal operating temperatures, reducing the risk of overheating and prolonging component life.
Mounting Options:
- Ease of Installation: Consideration of various mounting options such as wall-mount, rack-mount, or desktop configurations ensures versatility in application environments.
- Securing the PCB: The design must include appropriate mount points and fixtures to securely hold the PCB in place, minimizing movement and vibration.
Accessibility:
- Service and Maintenance: Enclosures must be designed to allow easy access to the PCB and its components for repair, replacement, or modification.
- User Interfaces: Features such as doors, panels, or ports should be strategically positioned for easy interaction without compromising protection.
Cable Management:
- Organizational Efficiency: Effective cable management solutions, such as slots, channels, or clips, should be integrated to organize wires and reduce clutter.
- Signal Integrity: By minimizing cable overlap and interference, proper management helps maintain signal clarity and reduce wear on connectors.
Balancing Functionality with Aesthetics and Usability
Design-Aesthetic Balance:
- Material Selection: Choose materials that not only meet functional requirements (e.g., thermal, protective) but also enhance the visual appeal. Options include sleek metals or colored plastics that align with branding.
- Stylish Finishes: Consider textures, color schemes, and finishes that make the enclosure appealing while maintaining professional appearance standards.
Usability Enhancements:
- Intuitive Design: Ensure that the design features clearly marked inputs and outputs, easy-to-understand controls, and minimalistic interfaces for user friendliness.
- Ergonomic Considerations: Pay attention to the design layout that promotes ease of use, such as comfortable grip points for handling and intuitive access to frequently used functions.
Functionality:
- Robustness vs. Weight: Achieve a balance between structural integrity and weight, ensuring the enclosure is durable but not excessively heavy or cumbersome.
- Innovative Solutions: Employ techniques like tool-free access or modular components that add functionality without sacrificing usability.
In designing PCB enclosures, the challenge lies in achieving a perfect synergy between functionality, aesthetics, and usability. This involves selecting materials and design elements that not only meet the technical needs but also appeal to end users and align with the overall product vision.
Chapter 7
Thermal Management in PCB Enclosures
Importance of Thermal Management in Preventing Overheating:
- Effective thermal management is crucial in PCB enclosures as it prevents overheating of electronic components, which can lead to reduced performance, component failure, and potential safety hazards. Keeping the operating temperature within acceptable limits is essential for maintaining the longevity and reliability of the device.
Methods to Enhance Cooling:
- Heatsinks: Attaching heatsinks to high-power components helps dissipate heat away from critical areas. They increase the surface area for heat transfer, enhancing cooling efficiency.
- Fans: Adding fans to the enclosure promotes active cooling by continuously moving air across the PCB, thus removing heat more effectively than passive cooling methods.
- Thermal Interface Materials (TIMs): Using materials like thermal pads or pastes improves thermal conductivity between components and heatsinks, ensuring efficient heat transfer.
- Heat Pipes and Vapor Chambers: These advanced cooling solutions transfer heat from hot spots to cooler areas, utilizing phase-change processes to maximize thermal efficiency.
- Ventilation Design: Strategically placed vents and airflow channels within the enclosure facilitate natural convection, aiding in consistent temperature management.
By integrating these cooling methods, PCB enclosures can effectively manage heat, ensuring the electronics operate within safe temperature ranges, which prolongs the life of the device and maintains optimal performance.
Chapter 8
PCB Waterproofing and Environmental Protection
Overview of IP Ratings and Waterproof Standards for PCB Enclosures:
- IP (Ingress Protection) ratings provide a standardized measure of protection offered by enclosures against dust and water ingress. For example, an IP67-rated enclosure ensures complete protection against dust and can withstand immersion in water up to 1 meter deep for 30 minutes. These standards are crucial for determining the suitability of PCB enclosures for various environmental conditions.
Enclosure Solutions for Harsh Environments such as Extreme Temperatures and Humidity:
- Durable Materials: Using materials resistant to corrosion and degradation, such as stainless steel or specialized plastics, helps protect PCBs in humid or chemically aggressive environments.
- Sealing Techniques: Employing high-quality seals and gaskets ensures that enclosures are airtight and watertight, preventing moisture and dust from entering.
- Temperature Management: Enclosures designed for extreme temperatures may incorporate insulation materials or active heating/cooling systems to maintain a stable internal environment.
- Humidity Control: Features such as desiccant packs or humidity indicators can be integrated to monitor and control moisture levels within the enclosure, safeguarding sensitive electronics.
By adhering to appropriate IP ratings and implementing robust design solutions, PCB enclosures can provide excellent protection in harsh conditions, ensuring the reliability and longevity of the electronic components housed within.
Chapter 9
How to Select the Ideal PCB Enclosure?
Unveil the exceptional benefits and superior performance of South-Electronic’s PCB enclosures, meticulously crafted to enhance the success and efficiency of your projects. Our commitment to quality and innovation ensures that each enclosure we deliver is not just a product but a pivotal solution, offering unparalleled durability, protection, and customized precision to meet the exacting demands of your applications.
Tailored High-Quality Materials: Your projects deserve the best. That’s why we select only the finest materials, ensuring each enclosure you receive has a flawless finish, enhancing your operation’s efficiency and output.
Imported Coating for Superior Performance: You benefit from our use of premium imported materials for coating, which leads to exceptionally durable and protective layers. This commitment to quality guarantees your enclosures have outstanding resistance to environmental factors and a longer operational life.
Custom-Designed Precision: Your unique project requirements are our top priority. Our enclosures are precision-engineered, with custom sizing and shaping available to fit your specific needs perfectly, ensuring optimal performance and quality in every piece.
Innovative Design and Manufacturing Technology: Your operations will benefit from our advanced manufacturing process, which ensures even material distribution and superior protection, significantly extending the life of your enclosures.
Dedicated Solutions for Enhanced Longevity: You get enclosures designed for longevity. Our bespoke solutions are rigorously tested for durability and performance, providing a solution that meets and exceeds industry standards.
Choosing South-Electronic means partnering with a leader in enclosure technology, where your needs are prioritized to ensure your projects succeed with high-quality, durable, and efficient solutions.
Chapter 10
How to Select the Ideal PCB Enclosure?
Unveil the exceptional benefits and superior performance of South-Electronic’s PCB enclosures, meticulously crafted to enhance the success and efficiency of your projects. Our commitment to quality and innovation ensures that each enclosure we deliver is not just a product but a pivotal solution, offering unparalleled durability, protection, and customized precision to meet the exacting demands of your applications.
Tailored High-Quality Materials: Your projects deserve the best. That’s why we select only the finest materials, ensuring each enclosure you receive has a flawless finish, enhancing your operation’s efficiency and output.
Imported Coating for Superior Performance: You benefit from our use of premium imported materials for coating, which leads to exceptionally durable and protective layers. This commitment to quality guarantees your enclosures have outstanding resistance to environmental factors and a longer operational life.
Custom-Designed Precision: Your unique project requirements are our top priority. Our enclosures are precision-engineered, with custom sizing and shaping available to fit your specific needs perfectly, ensuring optimal performance and quality in every piece.
Innovative Design and Manufacturing Technology: Your operations will benefit from our advanced manufacturing process, which ensures even material distribution and superior protection, significantly extending the life of your enclosures.
Dedicated Solutions for Enhanced Longevity: You get enclosures designed for longevity. Our bespoke solutions are rigorously tested for durability and performance, providing a solution that meets and exceeds industry standards.
Choosing South-Electronic means partnering with a leader in enclosure technology, where your needs are prioritized to ensure your projects succeed with high-quality, durable, and efficient solutions.
