Different Types of Connectors
Connectors are classified into several types based on their termination ends, contact styles, and applications. The most common types include USB, HDMI, Ethernet, Audio Jack, and Power Connectors, each serving specific purposes in electronics and computing. Understanding these types is vital for ensuring proper connectivity and functionality in your projects.
| Connector Type | Description | Example Applications |
|---|---|---|
| Board-to-Board | Connects two PCBs | Smartphones, tablets, compact devices |
| Cable/Wire-to-Cable/Wire | Joins two cables or wires | Networking, telecommunications |
| Cable/Wire-to-Board | Connects a cable or wire to a PCB | Consumer electronics, industrial use |
Understanding USB Connectors
- Applications: USB connectors are ubiquitous in modern electronics. They are used for data transfer, charging devices, and peripheral connectivity. USB connectors come in various types, including USB-A, USB-B, USB-C, and micro USB, each with specific applications and advantages.
- Pros: Universal, widely supported, easy to use.
- Cons: Limited power delivery in older versions, potential for wear and tear.
USB Connector Types:
| USB Type | Description | Common Uses |
|---|---|---|
| USB-A | Standard rectangular connector | Computers, chargers, peripherals |
| USB-B | Square connector with beveled corners | Printers, external hard drives |
| USB-C | Reversible connector | Smartphones, laptops, modern devices |
| Micro USB | Smaller version of USB-B | Older smartphones, portable devices |
Exploring HDMI Connectors
- Applications: HDMI connectors are primarily used for transmitting high-definition video and audio signals between devices like TVs, monitors, and computers. HDMI connectors come in different versions such as standard HDMI, mini HDMI, and micro HDMI, each suited for specific applications.
- Pros: High-quality audio and video transmission, supports multiple audio channels.
- Cons: Bulkier compared to other connectors, limited cable length for optimal performance.
HDMI Connector Types:
| HDMI Type | Description | Common Uses |
|---|---|---|
| Standard HDMI | Full-size HDMI connector | TVs, monitors, gaming consoles |
| Mini HDMI | Smaller version of the standard HDMI connector | DSLR cameras, tablets |
| Micro HDMI | Even smaller version of HDMI | Smartphones, compact devices |

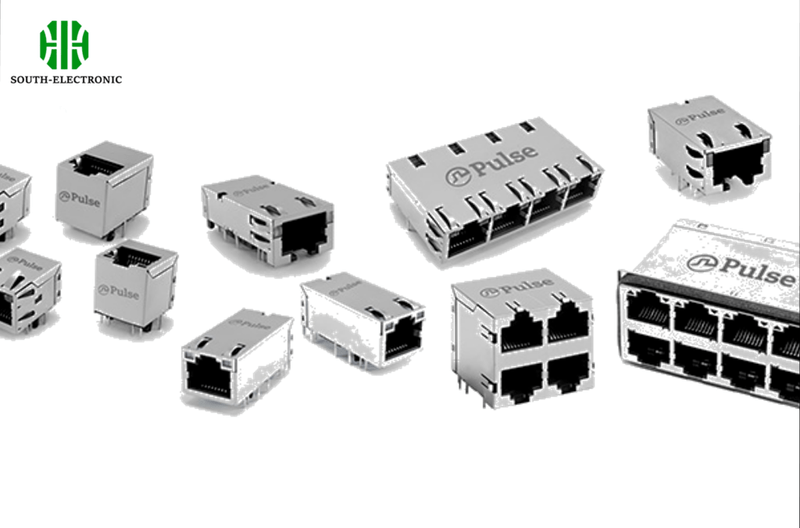

The Role of Ethernet Connectors
- Applications: Ethernet connectors are used for network connectivity, providing wired internet access to computers, routers, and other network devices. The most common type of Ethernet connector is the RJ-45, which is used in various networking applications.
- Pros: Reliable, high-speed data transfer, secure.
- Cons: Requires physical cabling, less flexible than wireless options.
Ethernet Connector Types:
| Ethernet Type | Description | Common Uses |
|---|---|---|
| RJ-45 | Standard Ethernet connector | Computers, routers, switches |
| RJ-11 | Smaller connector for telephony | Telephones, modems |

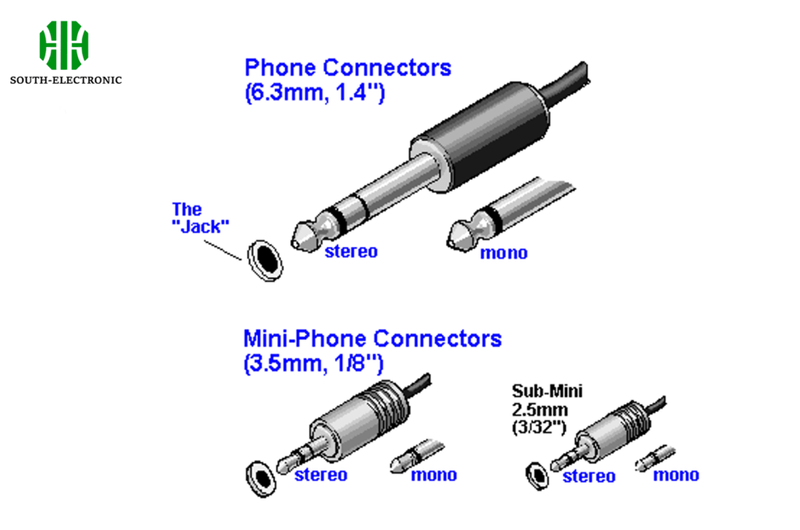

Audio Jack Connectors Explained
- Applications: Audio jack connectors are used in audio devices for transmitting sound signals, such as headphones, speakers, and microphones. Audio jacks come in various sizes, including 2.5mm, 3.5mm, and 6.35mm, each used for different audio equipment.
- Pros: Simple, widely compatible, low cost.
- Cons: Limited to audio transmission, potential for physical wear.
Audio Jack Connector Types:
| Audio Jack Type | Description | Common Uses |
|---|---|---|
| 3.5mm | Standard headphone jack | Smartphones, laptops, headphones |
| 6.35mm | Larger jack for professional equipment | Musical instruments, amplifiers |
| 2.5mm | Smaller jack for compact devices | Older mobile phones, certain audio equipment |

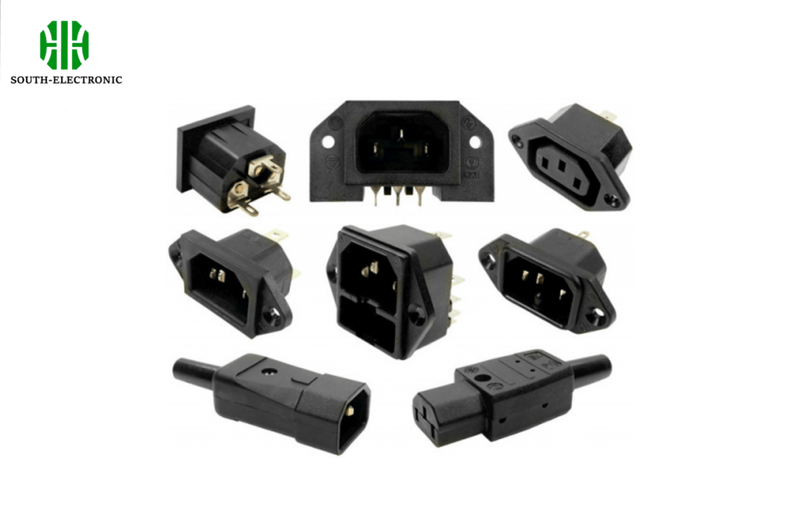

Power Connectors and Their Uses
- Applications: Power connectors provide electrical power to various devices, ranging from small electronics to large industrial machines. Power connectors come in different forms such as barrel connectors, molex connectors, and IEC connectors, each designed for specific power requirements.
- Pros: Essential for powering devices, variety of types for different voltages and currents.
- Cons: Risk of electrical hazards if not used properly, can be bulky.
Power Connector Types:
| Power Connector Type | Description | Common Uses |
|---|---|---|
| Barrel Connector | Cylindrical connector for low voltage | Laptops, routers, small appliances |
| Molex Connector | Multipin connector for internal power | Desktop computers, internal drives |
| IEC Connector | Standard for high-voltage applications | Power supplies, monitors, appliances |
Different Connector Contact Styles
- Solder: Requires soldering for connection, providing a strong and reliable bond.
- Press-Fit: No soldering needed, uses mechanical force to secure the connection.
- Clamp: Uses a clamping mechanism to hold the connector in place.
- Crimp: Requires crimping tools to attach connectors to cables, common in networking.
- Insulation Displacement (IDC): Connects by displacing insulation, used for quick connections without stripping wires.
Choosing the Right Connector for Your Application
When choosing the right connector for your application, consider the following factors:
- Application Needs: Determine the specific requirements of your application, including data transfer speed, power needs, and environmental conditions.
- Connector Type: Choose the connector type that best suits your needs (e.g., USB for general use, HDMI for video, Ethernet for networking).
- Durability and Reliability: Consider the durability and reliability of the connector, especially for critical applications.
- Ease of Use: Ensure the connector is easy to install and use, especially for applications that require frequent connections and disconnections.
- Compatibility: Verify that the connector is compatible with your devices and systems.
