How Are Integrated Circuit Packages Classified?

CONTENTS

IC Package

How Are Integrated Circuit Packages Classified?

Integrated circuit packages are classified based on their chip size and pin layout. The main classifications include Small Scale Integration (SSI), Medium Scale Integration (MSI), and Large Scale Integration (LSI). Additionally, packages are categorized by their mounting methods, such as through-hole and surface-mount, and their pin configurations, like DIP, SOP, QFP, and BGA.

Types of IC Packages

Classification by Chip Size

ICs can be classified on the basis of their chip size as follows:

  • Small Scale Integration (SSI): 3 to 30 gates/chip
  • Medium Scale Integration (MSI): 30 to 300 gates/chip
  • Large Scale Integration (LSI): 300 to 3,000 gates/chip
IC Package

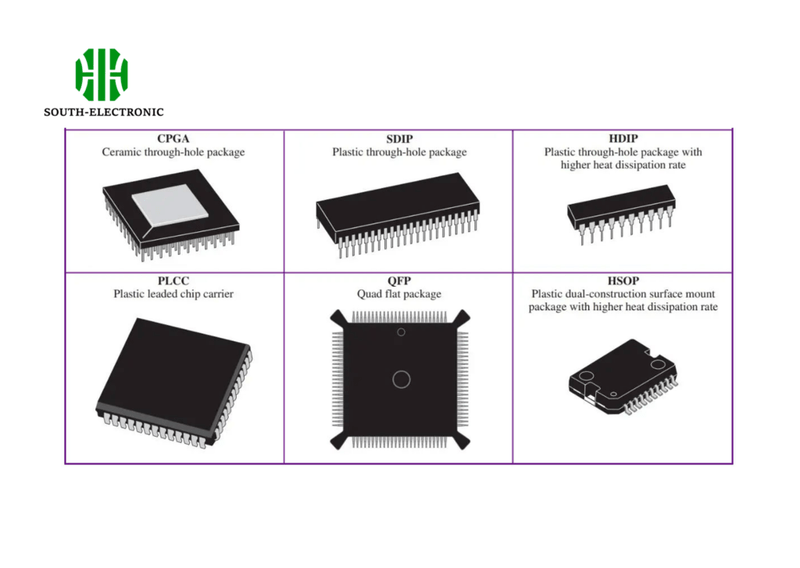

Classification by Mounting Methods

Through-Hole Packages Through-hole packages are designed to be inserted into drilled holes on a printed circuit board (PCB) and soldered in place. This type is often used for prototyping and applications requiring strong mechanical bonds.

  • Dual Inline Package (DIP)
  • Pin Grid Array (PGA)

Surface-Mount Packages Surface-mount packages are soldered directly onto the surface of a PCB, allowing for more compact and efficient designs.

  • Small Outline Package (SOP)
  • Quad Flat Package (QFP)
  • Ball Grid Array (BGA)
Package TypePin ConfigurationTypical Use
DIPDual inlinePrototyping, hobby projects
SOPSmall outlineCompact devices
QFPQuad flatHigh pin count ICs
BGABall grid arrayHigh performance, compact spaces
IC Package

Classification by Pin Configuration

IC packages are also classified based on their pin configuration. Here are some of the common types:

  • Through-Hole Packages: Include DIP and PGA packages.
  • Surface-Mount Packages: Include SOP, QFP, and BGA packages.

How to Choose the Right IC Package

When selecting an IC package for your project, consider the following factors:

  • Size and Footprint: Ensure the package fits within your PCB design.
  • Pin Count and Layout: Choose a package that supports the necessary number of connections.
  • Thermal Performance: Consider packages with good heat dissipation for high-power applications.
  • Mechanical Stability: Select through-hole packages for mechanical robustness or surface-mount for compact designs.
  • Ease of Assembly: For prototyping, DIP packages are easier to handle, while surface-mount packages are better for automated production.
FactorDIPSOPQFPBGA
Size and FootprintLargeSmallMediumSmall
Pin CountLowMediumHighVery High
Thermal PerformanceMediumMediumHighVery High
Mechanical StabilityHighMediumLowLow
Ease of AssemblyEasyModerateDifficultVery Difficult

Understanding the classification of integrated circuit packages helps in selecting the right type for specific applications. This knowledge enhances the design, performance, and reliability of electronic devices. For more detailed information, refer to our comprehensive guides and resources.

If you have any questions or need further information about PCB technologies, feel free to leave a comment below. Don’t forget to share this article if you found it useful, and stay connected for more insights into the fascinating world of electronics!
