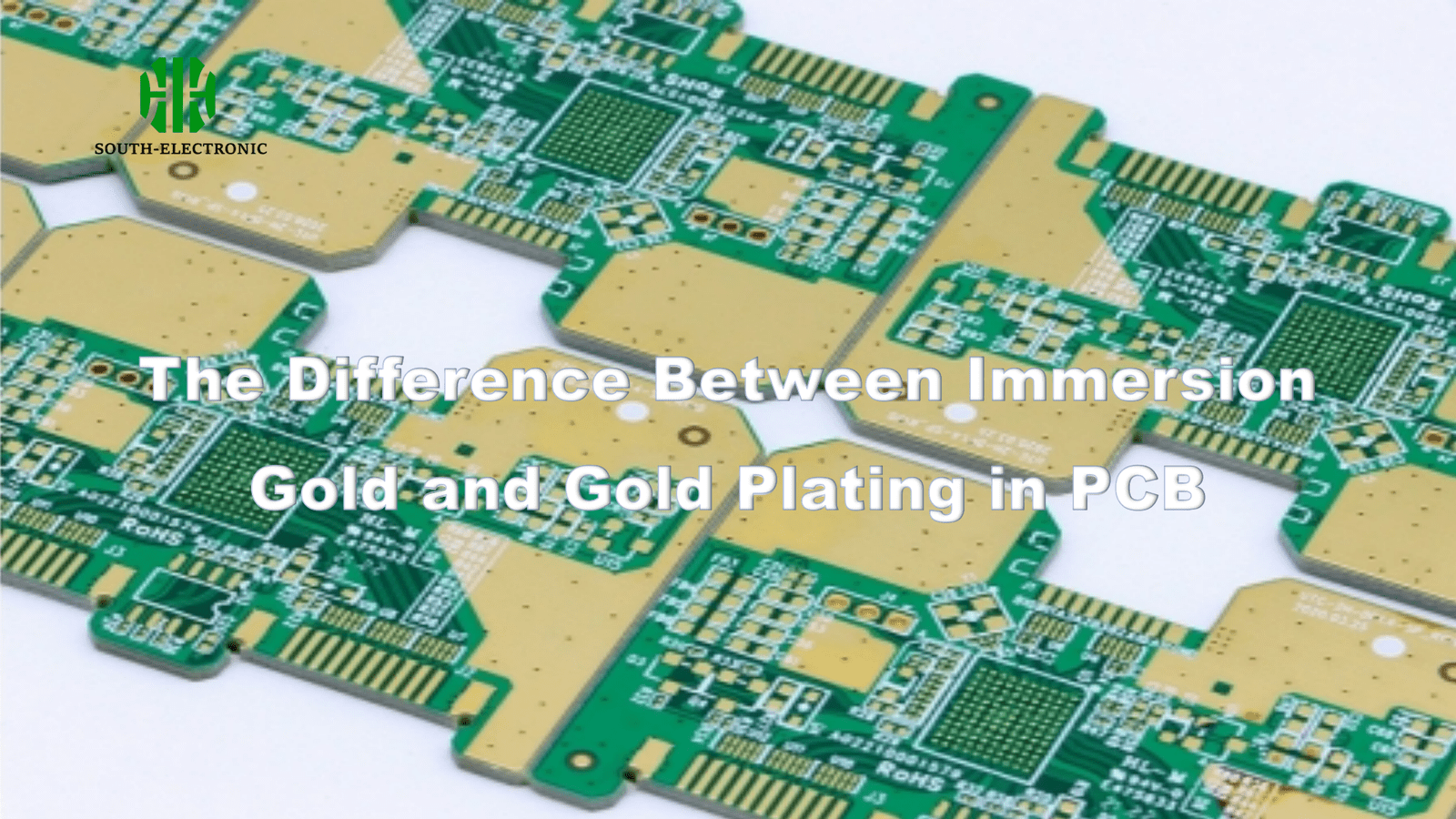

Worried about choosing the wrong surface finish for your PCB? You're not alone. This eternal debate between immersion gold (ENIG) and gold plating impacts performance, cost, and durability. Let me break down the critical differences.
While both methods use gold, immersion gold[^1] creates a flat surface ideal for soldering, while gold plating[^2] builds thicker layers for enhanced durability. The key distinction lies in their crystal structures and wear resistance properties.
Engineers often struggle to choose between these two finishes. But here's what matters most: your project's specific needs. Let's compare four crucial aspects that decision-makers often overlook.
Which is More Cost-Effective: Immersion Gold or Gold Plating for PCB Production?
Sticker shock hits hard when choosing surface finishes. But cutting costs here could mean compromising quality. Where should you allocate your budget?
Immersion gold typically costs less for complex multilayer boards due to simpler processing, while gold plating becomes economical for high-volume simple designs through automated plating baths.
Breaking Down Cost Factors
Three primary elements dictate total costs:
-
Material Costs
Gold plating uses 5-10X more gold than immersion gold processes -
Production Complexity
| Factor | Immersion Gold | Gold Plating |
|---|---|---|
| Setup Time | 15-20 mins | 45-60 mins |
| Equipment Cost | $40K | $120K |
| Waste Management | Low | High |
- Rework Expenses

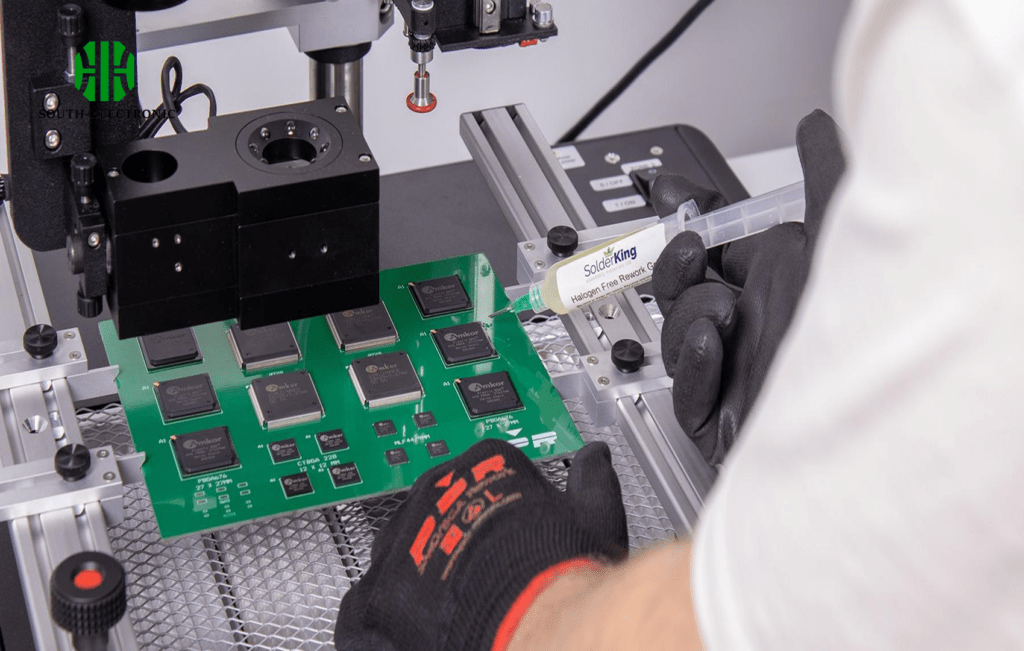

Immersion gold allows easier trace repair (2-3 attempts) vs gold plating's single-use surface
Protip: Choose immersion gold when working with tight component spacing - the flatter surface reduces bridging risks during soldering.

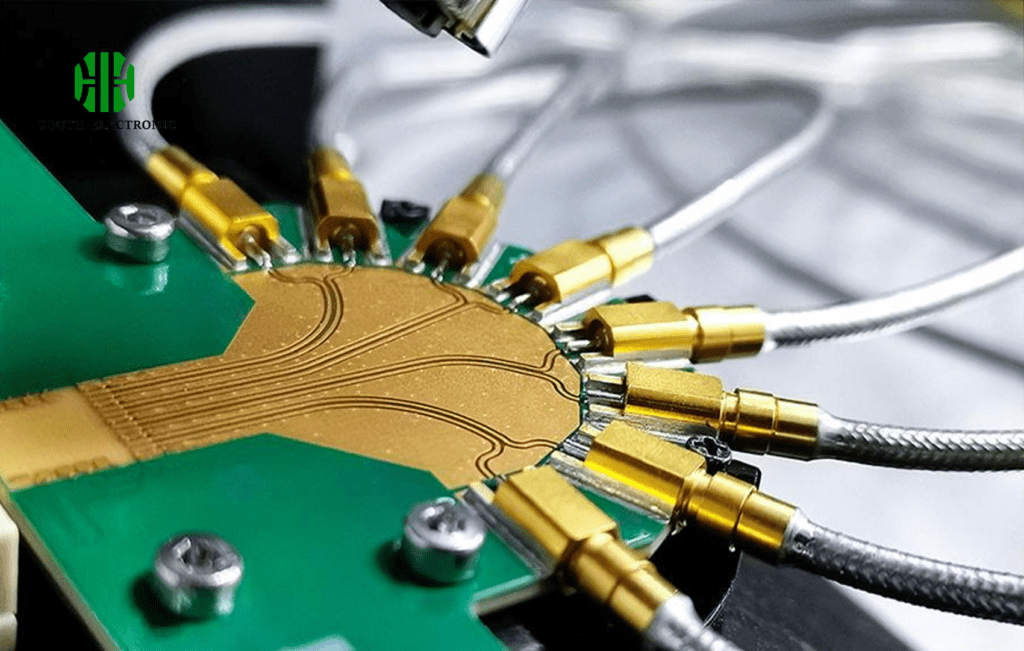

Does Immersion Gold Provide Better Electrical Conductivity Than Gold Plating?
Signal loss keeps engineers awake at night. But does gold finish type actually impact conductivity? The answer might surprise you.
Both finishes offer excellent conductivity, but immersion gold's flatter surface (Ra 0.05μm vs 0.15μm) enables better high-frequency performance through reduced skin effect losses.
Conductivity Deep Dive
Key electrical considerations:
-
Surface Roughness
Smoother finishes improve signal integrity at >1GHz frequencies -
Oxidation Resistance
Immersion gold's nickel barrier prevents copper diffusion better than direct plating -
Contact Resistance
| Frequency Range | Immersion Gold | Gold Plating |
|---|---|---|
| DC - 100MHz | 25mΩ | 22mΩ |
| 1-5GHz | 38mΩ | 52mΩ |
Practical Takeaway: For RF/microwave applications, immersion gold's surface flatness outweighs gold plating's marginally lower DC resistance.

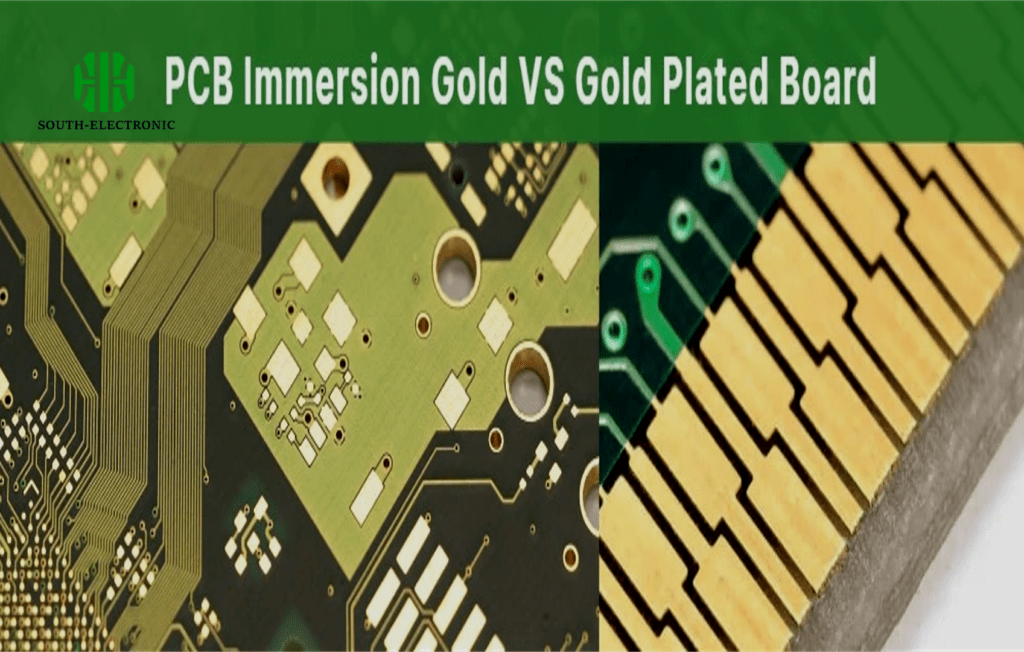

When Should You Choose ENIG Over Traditional Gold Plating in PCB Manufacturing?
Component density keeps increasing while board space shrinks. How do you ensure reliable connections in miniaturized designs?
ENIG becomes essential when using: ultra-fine pitch components (<0.4mm), multi-press connectors, or lead-free soldering processes. Its flatter surface prevents solder balling.
ENIG Application Matrix
Critical use cases and their requirements:
| Application | ENIG Advantage | Gold Plating Limit |
|---|---|---|
| Wearables | Better flex circuit adhesion | Cracks during repeated bends |
| Industrial Controls | Superior corrosion resistance[^3] | Sulfur exposure failure |
| Medical Devices | Consistent solder mask definition | Void formation |
| Automotive ECUs | Withstands thermal cycling | Intermetallic growth |
Real-World Example: A medical probe manufacturer reduced solder defects by 62% after switching to ENIG for their 0.3mm pitch sensor arrays.

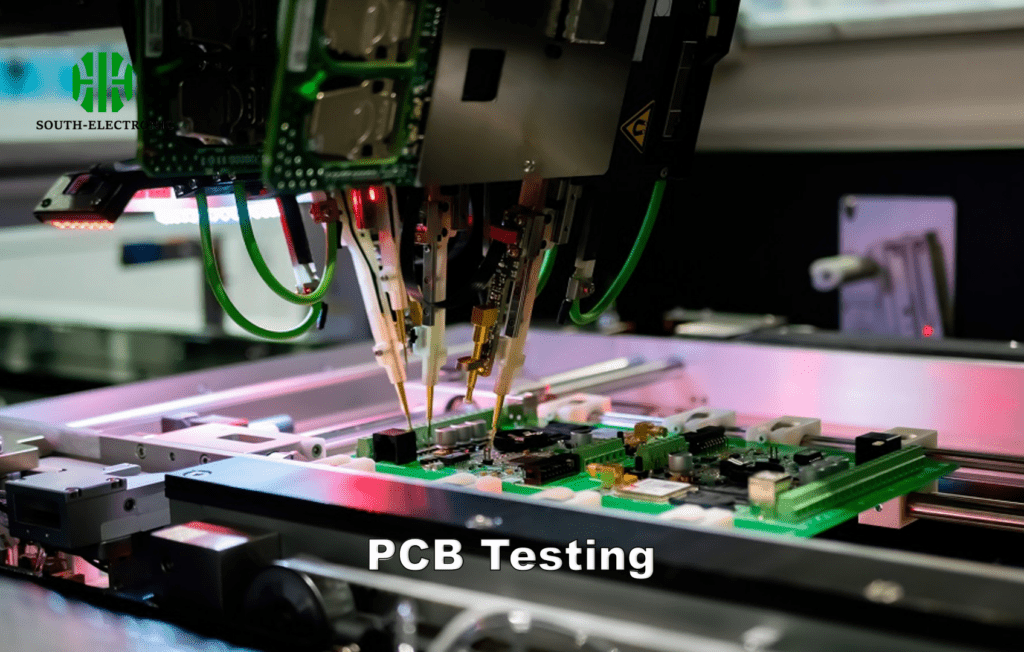

How Do the Surface Durability and Reliability Compare Between These Two Processes?
Your PCB might survive assembly, but will it last in the field? Surface durability differences could make or break product longevity.
Gold plating's harder surface (200-300 HK vs 130-150 HK) resists wear better, while ENIG's nickel barrier provides superior corrosion protection - especially in humid environments.
Durability Breakdown
Mechanical vs environmental factors:
-
Mechanical Stress
Gold plating withstands:- 200+ insertion cycles (connectors)
- 5N scratch resistance
- 100+ wipe cycles
-
Chemical Resistance
ENIG survives:- 96hr salt spray
- 85°C/85% RH - 1000hrs
- pH 3-11 chemical exposure
-
Thermal Performance
| Test | ENIG | Gold Plating |
|---|---|---|
| Thermal Shock | Passes 500 cycles | Fails at 300 cycles |
| Long-Term Heat Aging | Stable to 150°C | Degrades above 130°C |
Maintenance Tip: For edge connectors, use selective gold plating on contact areas with ENIG elsewhere to balance cost and durability.
Conclusion
Immersion gold excels in complex, high-frequency designs with environmental challenges, while gold plating suits high-wear applications. Match surface finish to your project's electrical needs, mechanical demands, and budget constraints for optimal PCB performance.
