What Is the Smallest Surface Mounted Component?

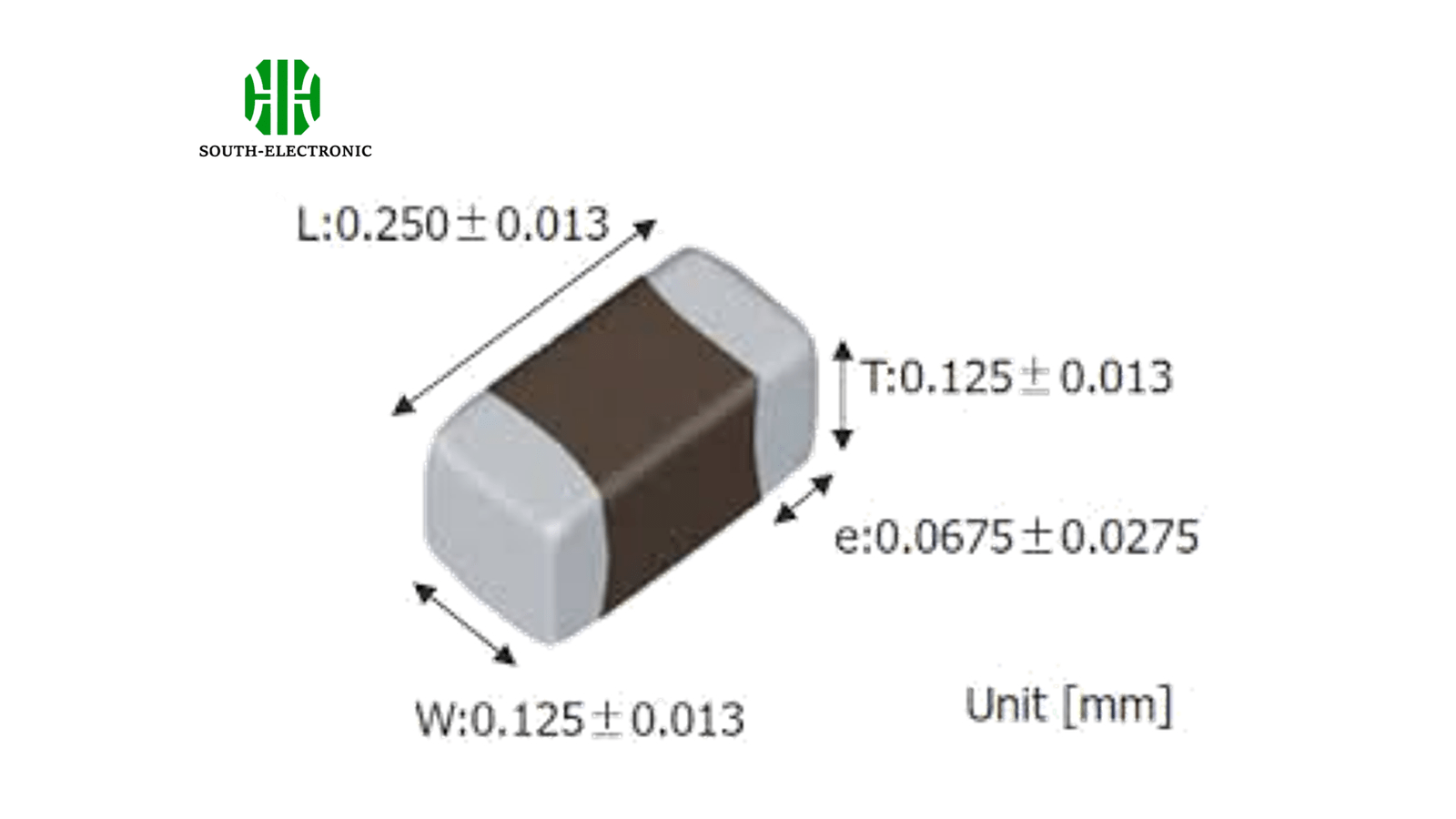

The smallest surface-mounted component is the 008004 SMD, measuring just 0.25 x 0.125 mm. This tiny device has set a new standard in miniaturization, allowing engineers to create even more compact and lightweight electronics. It is used primarily in applications that require extreme precision and high-density circuit design.
Types of the Smallest Surface Mounted Components
Surface-mounted components come in various forms, including resistors, capacitors, transistors, and LEDs. Below, we examine some of the smallest SMD components for each type and their respective uses.

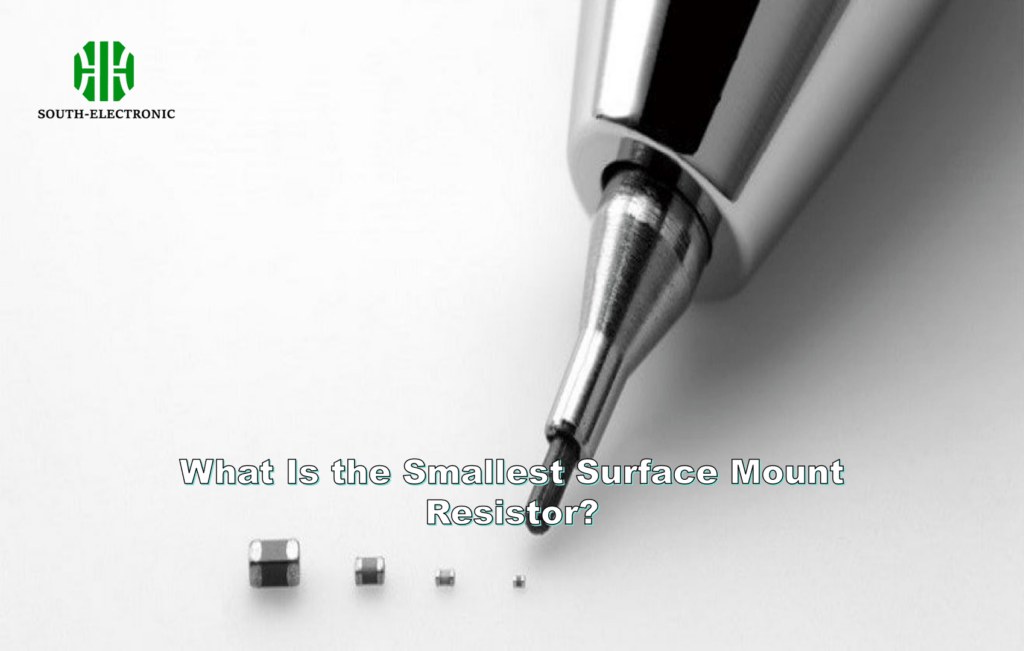

What Is the Smallest Surface Mount Resistor?
Surface-mounted resistors are crucial in limiting the current flow and dividing voltage in circuits. The smallest available size for resistors is the 0201 package, which measures 0.6 mm x 0.3 mm.
| Resistor Package | Dimensions (mm) | Applications |
|---|---|---|
| 0201 | 0.6 x 0.3 | Smartphones, IoT Devices |
| 0402 | 1.0 x 0.5 | Consumer Electronics, Automotive Systems |
| 0603 | 1.6 x 0.8 | Power Supplies, Industrial Systems |
These tiny resistors are commonly used in applications that require minimal space, such as smartphones and Internet of Things (IoT) devices.

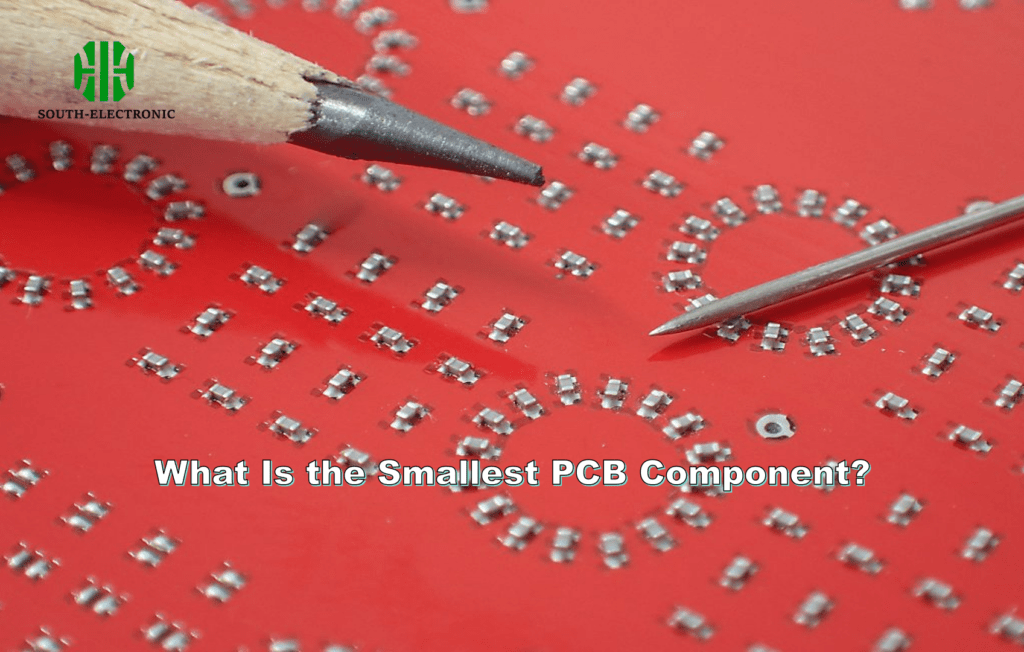

What Is the Smallest PCB Component?
When it comes to printed circuit boards (PCBs), component size is a critical factor for designing compact circuits. The 0201-sized component, which measures 0.024 x 0.012 inches, is currently the smallest PCB component widely used.
This component is typically found in high-density applications such as:
- Mobile phones
- Laptops
- High-end medical devices
What Is the Smallest SMD Transistor Package?

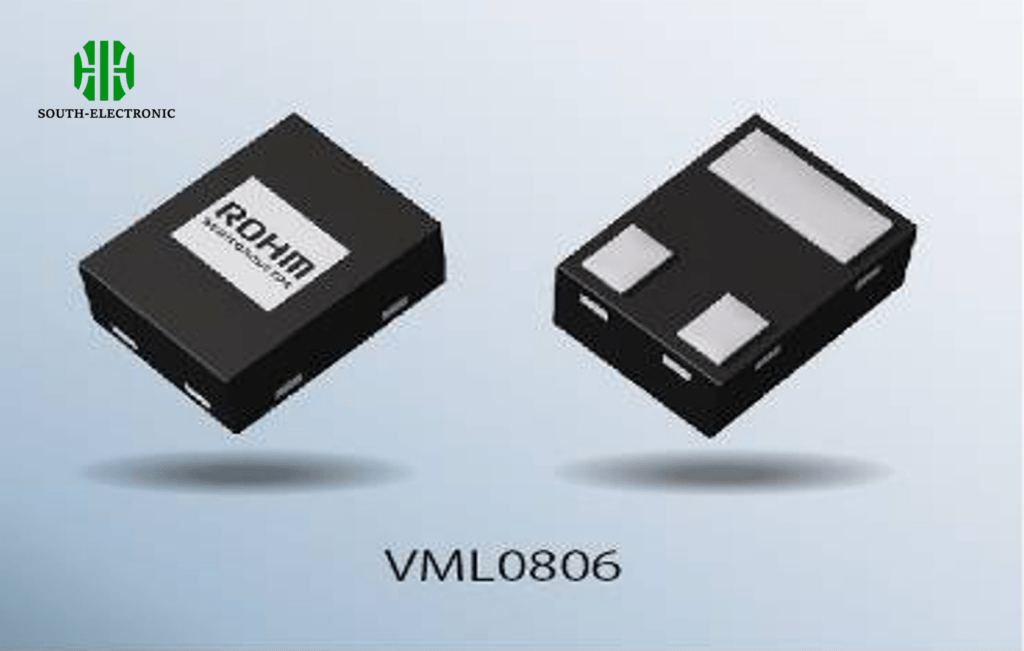

Transistors are essential for switching and amplifying electronic signals. The smallest SMD transistor package available today is the VML0806, which measures 0.8mm x 0.6mm with a height of only 0.36mm.**
| Transistor Package | Dimensions (mm) | Applications |
|---|---|---|
| VML0806 | 0.8 x 0.6 x 0.36 | Wearables, Mobile Devices |
| SOT-523 | 1.0 x 0.6 | Portable Electronics |
| SOT-323 | 2.1 x 1.25 | Automotive Systems, Power Management |
These small transistors are crucial for applications such as compact power management systems, wearables, and portable devices.
What Is the Smallest SMD LED Package?

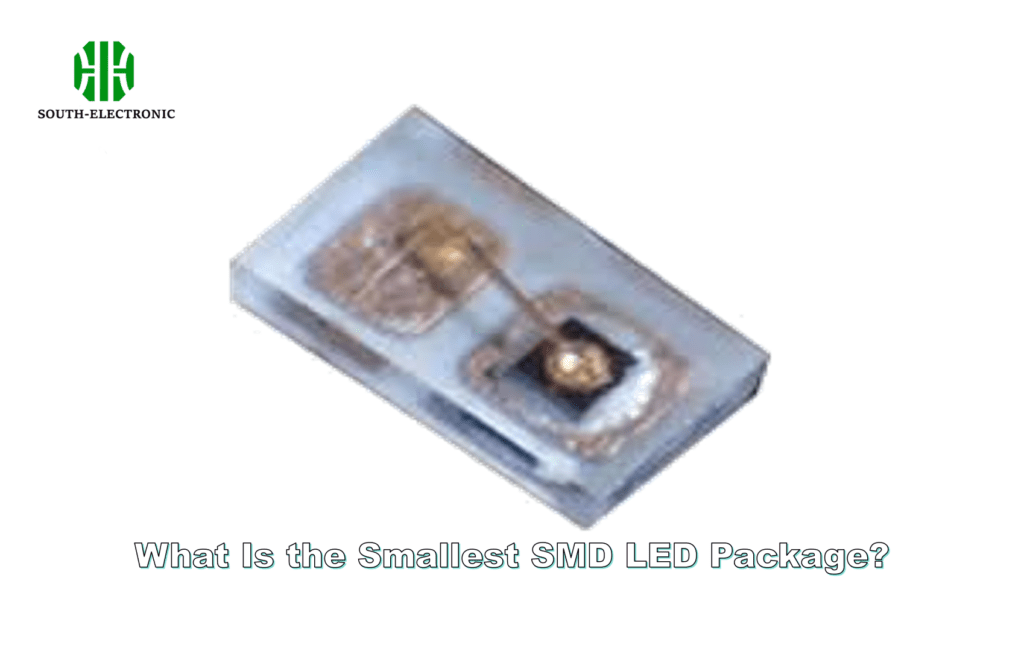

LEDs are commonly used for display and lighting applications, and as devices shrink, so do the LEDs used in them. The Kingbright KPG-0603 series SMD LEDs, measuring just 0.65 mm x 0.35 mm, are the smallest available.
This size is ideal for applications like:
- Backlighting for small displays
- Status indicators in ultra-compact devices
| LED Package | Dimensions (mm) | Brightness (mcd) | Applications |
|---|---|---|---|
| KPG-0603 (0201) | 0.65 x 0.35 | 40 | Smartphones, Compact Displays |
| 0603 | 1.6 x 0.8 | 150 | Keyboards, Indicators |
| 1206 | 3.2 x 1.6 | 200 | Display Panels, Illuminated Signs |
What Are the Future Trends in Miniaturization?
The trend toward smaller components will only continue as consumer demand for lightweight, compact, and efficient electronics grows. With the rise of wearable technology, medical implants, and smart devices, the push for miniaturization will drive further advancements.
Key trends to watch include:
- Nanotechnology: As electronics enter the nanoscale, we may see components that are even smaller than today’s 008004 SMDs.
- Flexible Electronics: As components shrink, flexible electronics will become more prominent, with applications in textiles and wearable devices.
In the ever-evolving field of electronics, miniaturization continues to push the boundaries of what is possible. The smallest surface-mounted components, such as the 008004 resistor or the VML0806 transistor, are enabling new innovations in technology that were unimaginable just a few years ago. As manufacturing techniques improve and demand for compact devices grows, we can expect even smaller and more efficient components in the future.
