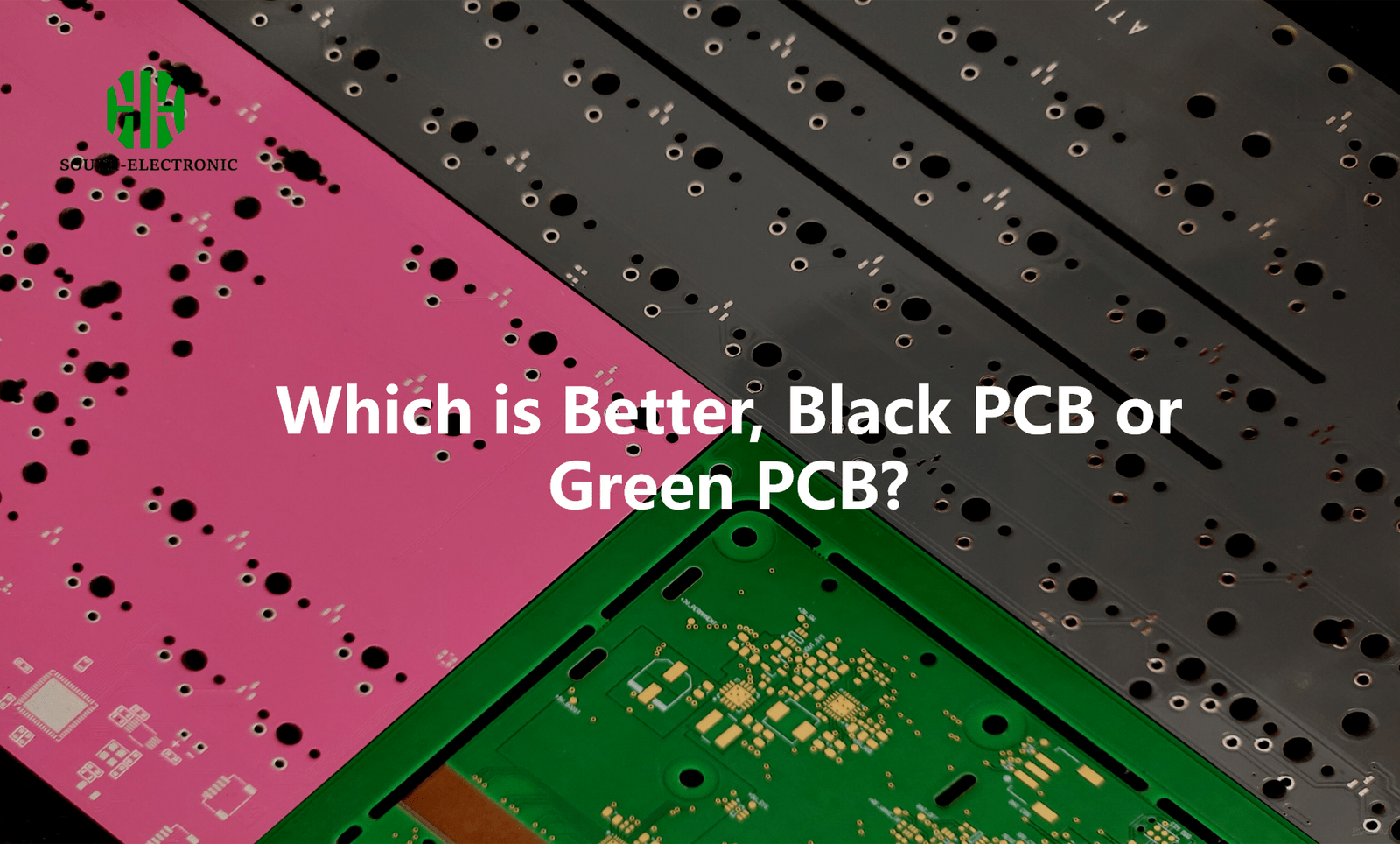

Which is Better, Black PCB or Green PCB?
Usually, either black or green is fine, but there’s one situation where green is better. If your PCB layout is really tight, you need to pay attention to the solder mask bridge. The manufacturing capability of solder bridges is related to the color of the solder mask and the thickness of the copper.

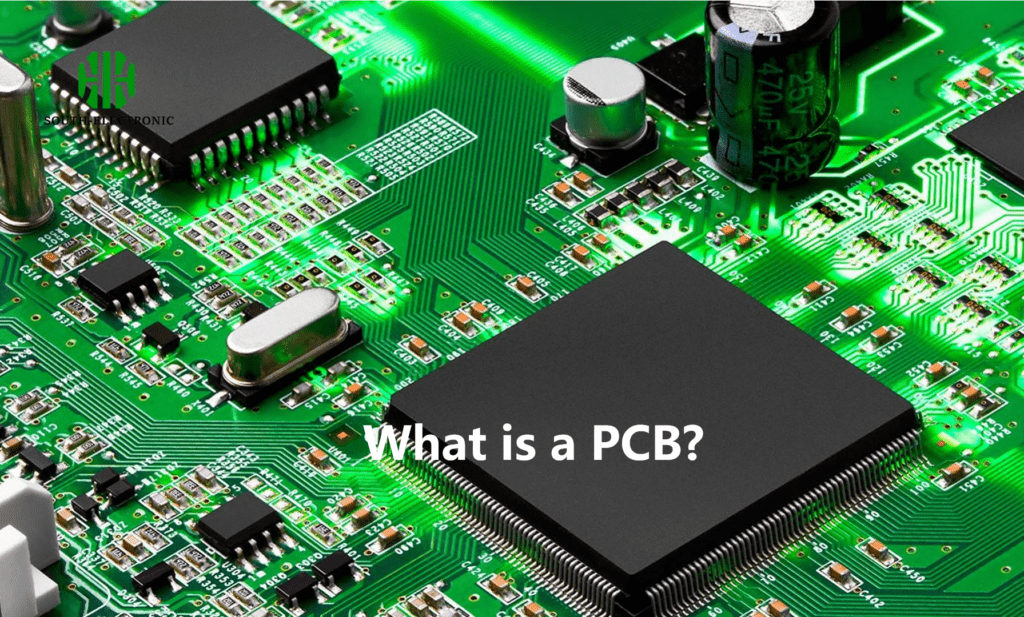

What is a PCB?
A PCB is a board that connects and supports electronic components using conductive tracks, pads, and other features etched from copper sheets laminated onto a non-conductive substrate. The color of a PCB is determined by the solder mask, a protective layer applied over the copper traces to prevent oxidation and short circuits. Although the solder mask color may seem like a purely aesthetic choice, it can have practical implications.

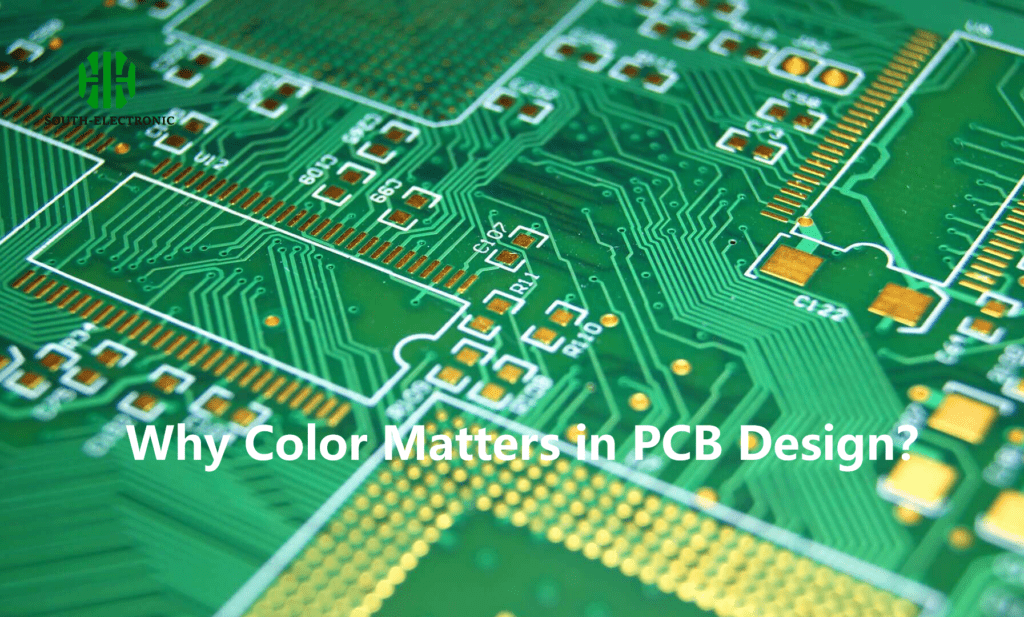

Why Color Matters in PCB Design？
- Visibility and Inspection: Different colors offer varying levels of contrast, making it easier or harder to inspect the PCB for defects.
- Heat Dissipation: Some colors may influence heat absorption and dissipation, affecting the board’s performance.
- Cost and Manufacturing: The choice of color can impact the cost and complexity of the manufacturing process.

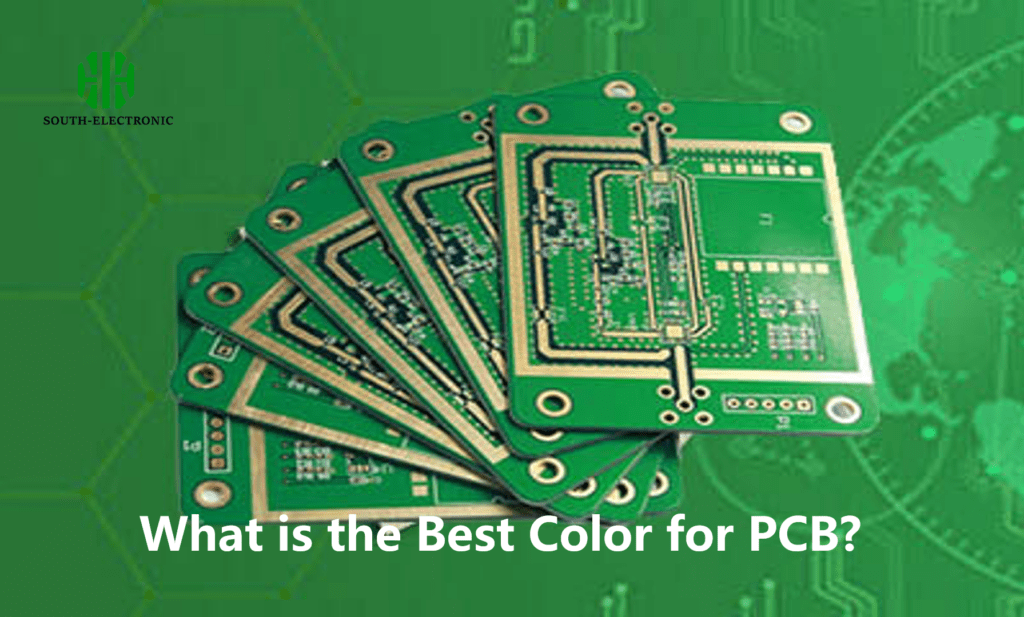

What is the Best Color for PCB?
Green is the most popular color for PCBs, and there’s a reason for this. People like green PCBs because they’re easy to see and work with. Green PCBs have high visibility and contrast, which makes them easier to inspect and repair.
Benefits of Green PCBs
- High Contrast: The green color offers excellent contrast with the white silkscreen, making it easier to see and identify components during assembly and inspection.
- Widely Used: Green PCBs are the industry standard, which means they are more readily available and usually cheaper to produce.
- Environmentally Friendly: Green solder masks are typically made from materials that are less toxic compared to other colors, such as black.
Are There Situations Where Black PCBs Are Better?
Black PCBs are often chosen for their sleek, professional appearance, especially in consumer electronics. However, there are specific situations where a black PCB might be more advantageous:
- Aesthetics: Black PCBs are preferred when the visual appearance of the board is critical, such as in high-end electronics or consumer-facing products.
- Visibility in Specific Applications: Black PCBs can provide better contrast for certain components, such as LEDs, which can improve visibility in low-light conditions.

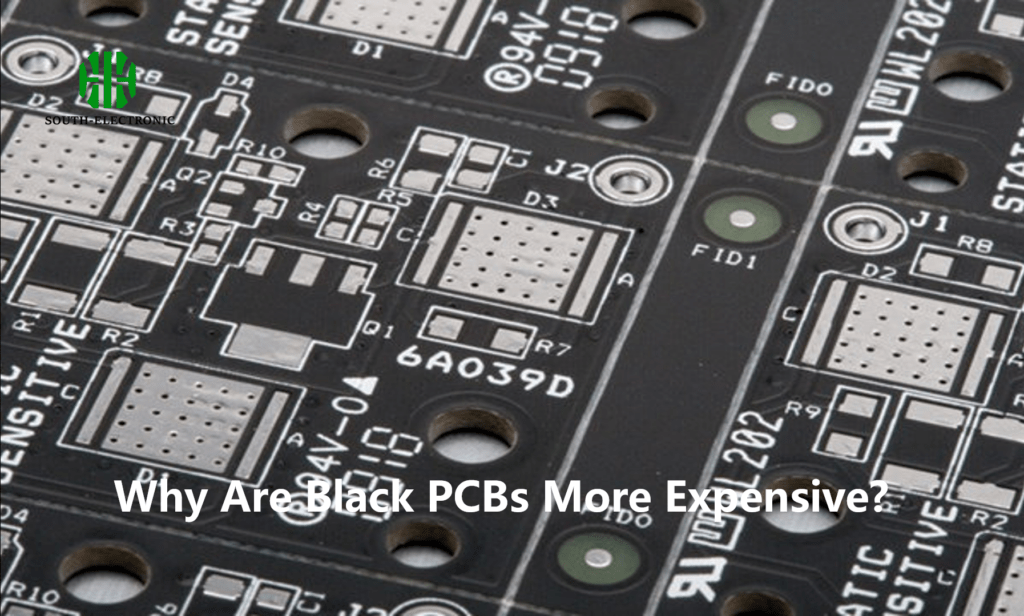

Why Are Black PCBs More Expensive?
Manufacturing Complexity
Black PCBs are usually more expensive because of the way they’re made. The black solder mask is more opaque, so it’s harder to see any defects when they’re being made. That means more of them get rejected, and that makes them more expensive.
Toxicity of Materials
Black solder masks use materials that are slightly more toxic than the ones used for green masks. This means that they have a greater environmental impact and require more expensive handling and disposal procedures.
Cost Comparison Table
| Feature | Green PCB | Black PCB |
|---|---|---|
| Cost | Lower | Higher |
| Ease of Manufacturing | Easier | More Complex |
| Environmental Impact | Lower | Higher |
| Aesthetics | Standard | Premium |
Does the Color of a Circuit Board Matter?
The color of a PCB might not seem important, but it can actually have a big impact on the manufacturing process, usability, and even the performance of the final product. The color of the solder mask can affect how easy it is to inspect the board for errors, the thermal properties of the board, and its overall reliability.
Impact on Inspection and Repair：Many people prefer green PCBs because the high contrast with the white silkscreen makes it easier to see mistakes during the inspection process. This can be especially important in complex circuits where precision is important.
Thermal Properties：Some people think that black PCBs might absorb more heat because they’re black. However, the difference in thermal properties is so small that it doesn’t matter in most applications. But in high-precision environments, that small difference can make a difference in the choice of PCB color.
Impact of PCB Color on Inspection and Performance
| Aspect | Green PCB | Black PCB |
|---|---|---|
| Inspection | Easier due to high contrast | Harder due to low contrast |
| Thermal Performance | Standard | Slightly higher heat absorption |
| Error Rate in Production | Lower due to visibility | Higher due to opacity |

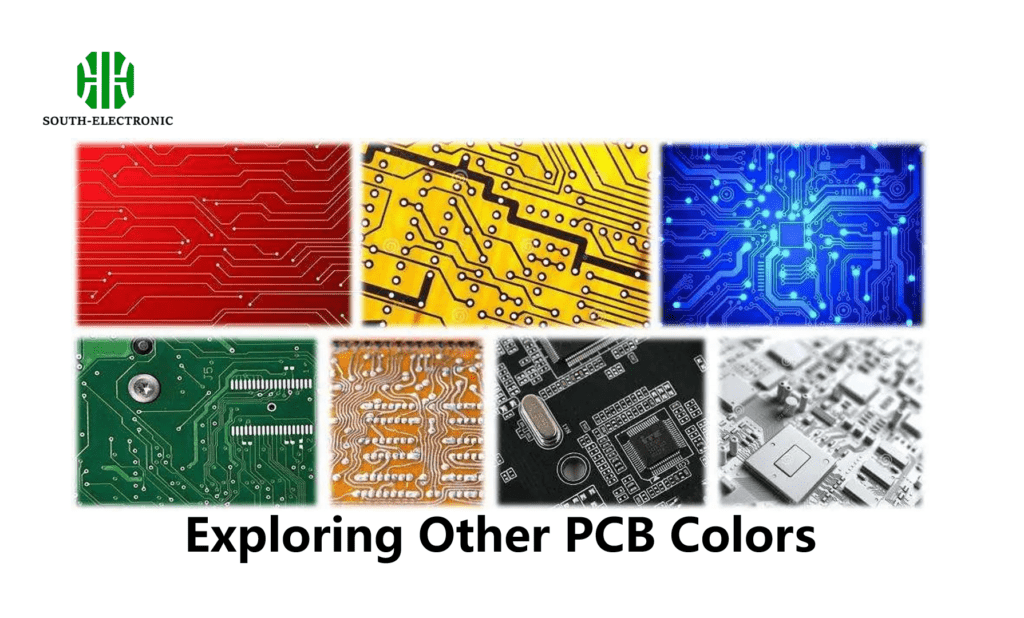

Exploring Other PCB Colors
While black and green are the most common PCB colors, you can also find PCBs in other colors like white, purple, and yellow. These colors are used for specific reasons:
- White PCB: Often used in LED applications to enhance light reflection.
- Purple PCB: Chosen for unique branding and product differentiation.
- Yellow PCB: Used for specific industrial applications where high visibility is required.
Which Should You Choose?
When it comes to deciding between a black PCB and a green PCB, it really comes down to what you need. If you want something that’s cheap, easy to check, and environmentally friendly, then a green PCB is probably the way to go. However, if you’re looking for something that looks premium, especially for consumer electronics, and you’re willing to pay more for it, then a black PCB might be the better choice.
Either way, both black and green PCBs perform well and are used in a wide range of applications. Think about what you need for your project and talk to your PCB manufacturer to make the best choice.
