Have you ever unboxed expensive PCBs only to find oxidation spots or warped substrates? The silent killer isn't poor manufacturing – it's inadequate packaging. Most engineers discover this reality only after costly field failures.
Vacuum packaging[^1] protects PCBs from moisture, oxidation, and physical damage by creating an oxygen-free environment. By removing atmospheric contaminants and maintaining stable humidity levels, it preserves solderability and component integrity, meeting J-STD-033D/IPC-1601 standards for critical electronics.
While vacuum-sealed bags might seem like a commodity item, their engineering specifications directly impact product reliability. Let's examine why this often-overlooked process separates functional prototypes from mission-critical electronics.
Benefits of Using Vacuum Sealing for PCB Packaging
What's the ROI of spending $0.80 extra on vacuum packaging? For a medical device PCB, it could prevent a $500K recall. The protective benefits translate to measurable financial returns across industries.
Vacuum sealing prevents moisture exposure[^2] (critical for MSD components), minimizes thermal stress[^3] during transport, and reduces ESD risks. Studies show it decreases field failures by 62% compared to anti-static bags alone, particularly in high-humidity environments.
)
Three Protection Mechanisms Explained
Advanced vacuum packaging combines multiple barrier technologies:
| Protection Layer | Function | Key Metrics |
|---|---|---|
| Aluminum Foil | Blocks moisture/O2 ingress | WVTR <0.01g/m²/day |
| ESD Film | Dissipates static charges | Surface resistivity 10^6-10^9 Ω/sq |
| Desiccant | Maintains dryness | RH ≤5% @40°C |
| Oxygen Scavenger | Eliminates residual O2 | Residual O2 <0.1% |

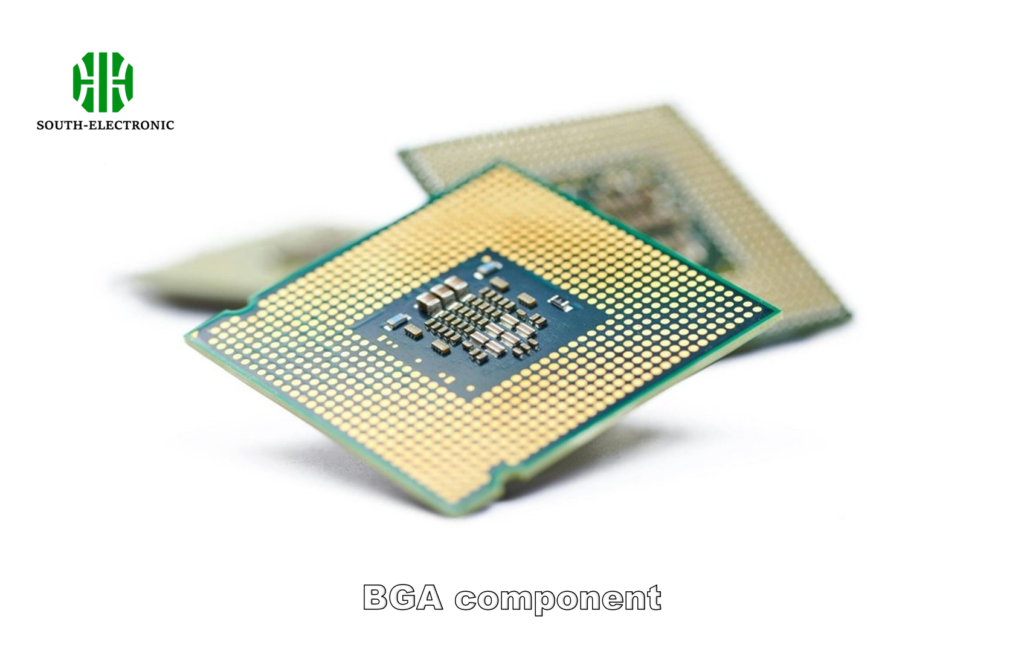

Unlike basic moisture barrier bags (MBBs), vacuum-sealed packages combine physical compression with chemical moisture absorption. This dual action is particularly effective for QFN/BGA components where even 500ppm moisture can cause "popcorning" during reflow.

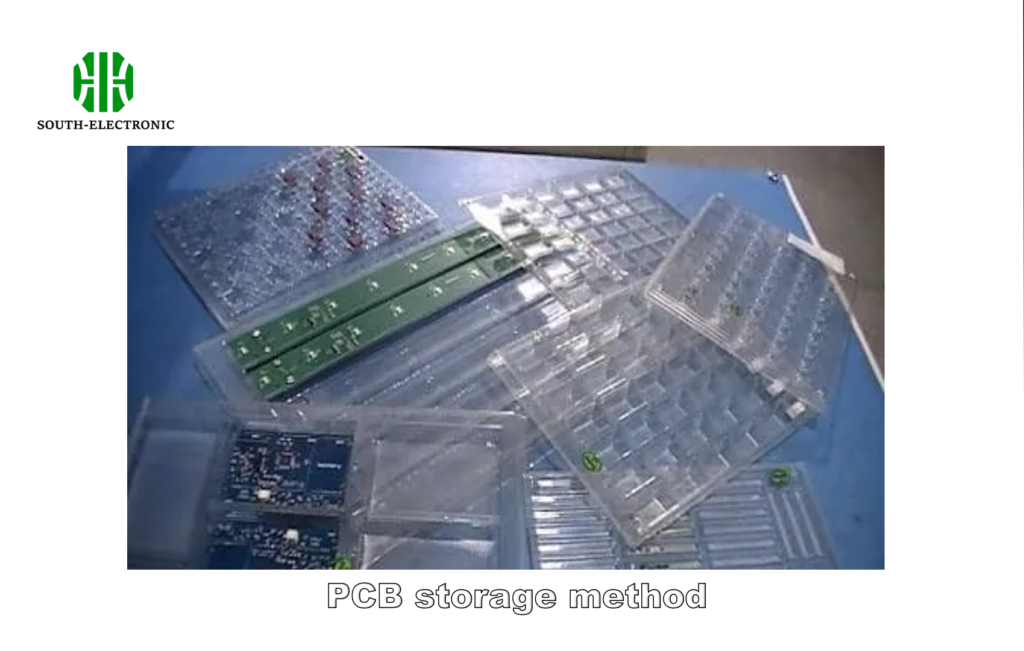

How Vacuum Sealing Extends Shelf Life
Why do aerospace PCBs require resealing after 2 years in storage? Shelf life isn’t about expiration dates – it’s controlled degradation. Vacuum packaging recalibrates the clock.
Proper vacuum sealing extends PCB shelf life[^4] from 12 months to 5+ years by maintaining 10GHz) to prevent dielectric constant drift.
)
Component Vulnerability Matrix
Critical need increases with these factors:
| Risk Factor | High Risk Examples | Sealing Protocol |
|---|---|---|
| Lead Pitch | <0.4mm QFN | Vacuum + nitrogen flush |
| Layer Count | 16+ layer HDI | Double-sealed edges |
| Material | PTFE/Polyimide | O² <0.01% environment |
| Application | Implantable medical | Gamma-stable bags |
| Finish | ENIG/ENEPIG | Extra desiccant packs |
Automotive radar PCBs (77GHz MMIC) demonstrate vacuum packaging's necessity – even 0.2% moisture absorption shifts antenna resonance frequencies. Post-sealing impedance testing verifies packaging effectiveness before shipping.
Ready to Try Vacuum Sealing for Your PCB Packaging Needs?
The choice is clear: vacuum packaging is insurance against invisible threats. Losing $50k in scrap boards over a $200 packaging investment makes no financial sense. Start with critical boards – prove the ROI – then scale across your product line. Contact material specialists today for moisture sensitivity analysis[^5] and customized packaging protocols.
Conclusion
Vacuum packaging isn't optional for modern electronics – it's reliability engineering[^6]. From preventing delamination to maintaining impedance control, proper sealing ensures your PCBs perform as designed, when needed most.
