Why FR4 Material is Preferred in PCB Fabrication?
When it comes to PCB fabrication, selecting the right material is crucial. FR4, a glass-reinforced epoxy laminate, stands out due to its exceptional balance of properties and cost-effectiveness, making it the go-to choice for various electronic applications.
What is FR4?

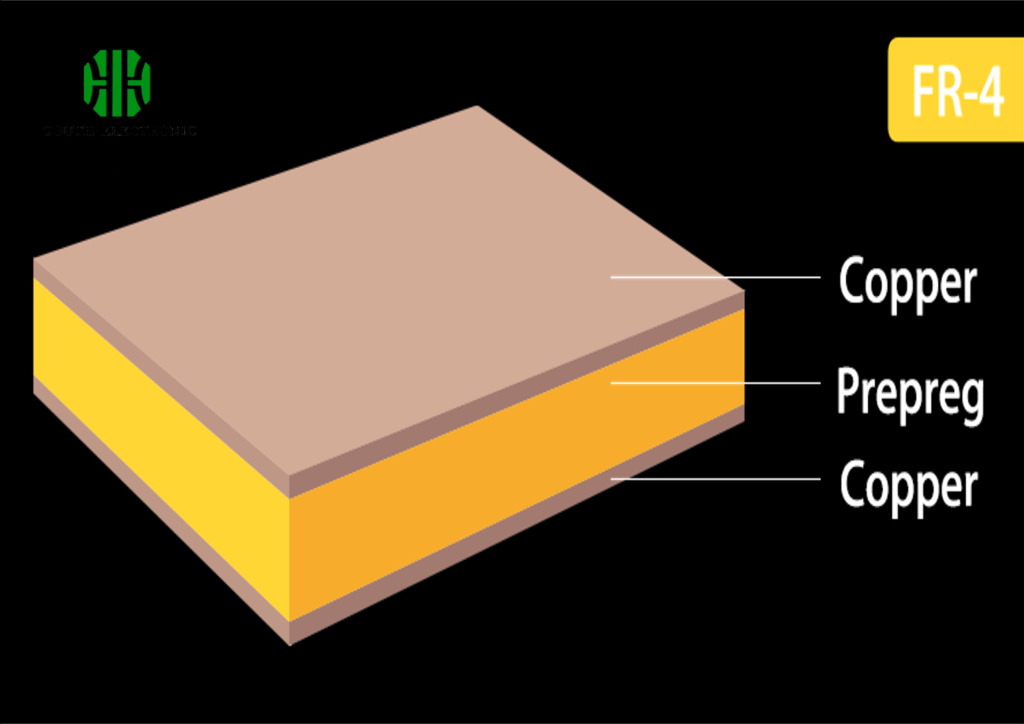

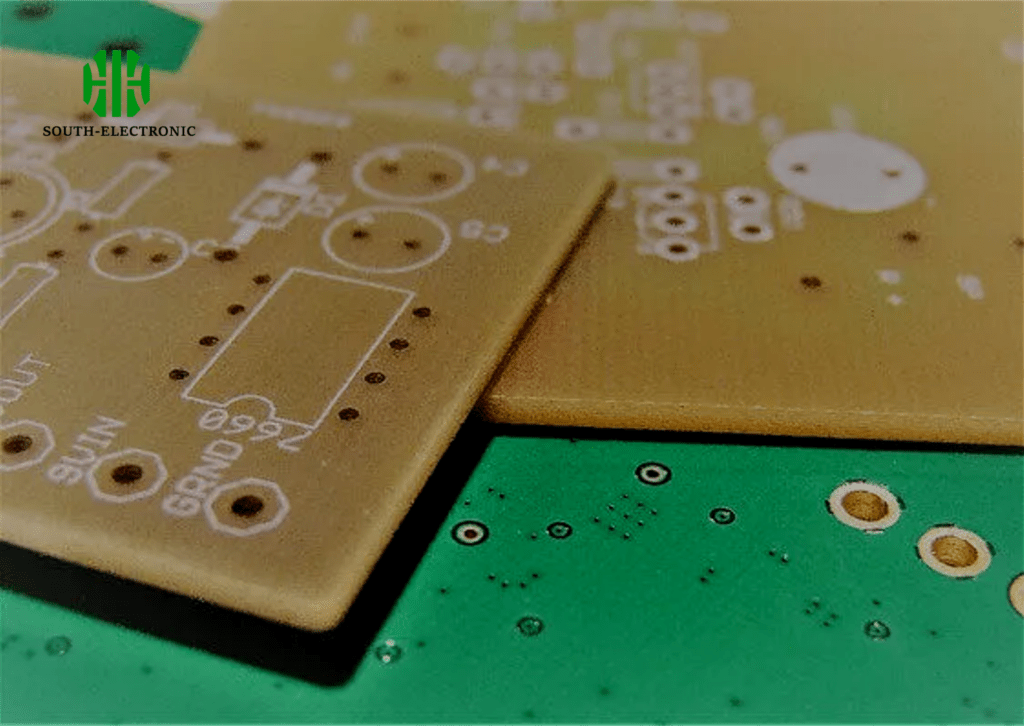

FR4 is a composite material made from woven fiberglass cloth and an epoxy resin binder that resists flames. It’s called FR4 because ‘FR’ means ‘Flame Retardant,’ and ‘4’ means it’s made from that specific type of material.
Key Properties of FR4
- Mechanical Strength：FR4 provides robust support to the PCB, maintaining integrity under stress. This is vital for ensuring the durability and reliability of the boards in various environments.
- Electrical Insulation：FR4 offers excellent insulation between different copper layers, ensuring signal integrity. This property is critical for preventing electrical interference and maintaining the performance of electronic circuits.
- Thermal Stability：FR4 operates effectively within a wide temperature range, typically from -50°C to 115°C. This thermal stability ensures that PCBs can function reliably under different thermal conditions.
- Low Water Absorption：FR4 maintains performance in humid environments with minimal moisture absorption. This property helps prevent short circuits and electrical failures due to moisture.
- Cost-Effectiveness：Compared to other high-performance materials, FR4 is affordable, making it ideal for a broad range of applications. This cost-effectiveness does not compromise the quality and performance of the PCBs.
Applications of FR4 in PCB Fabrication

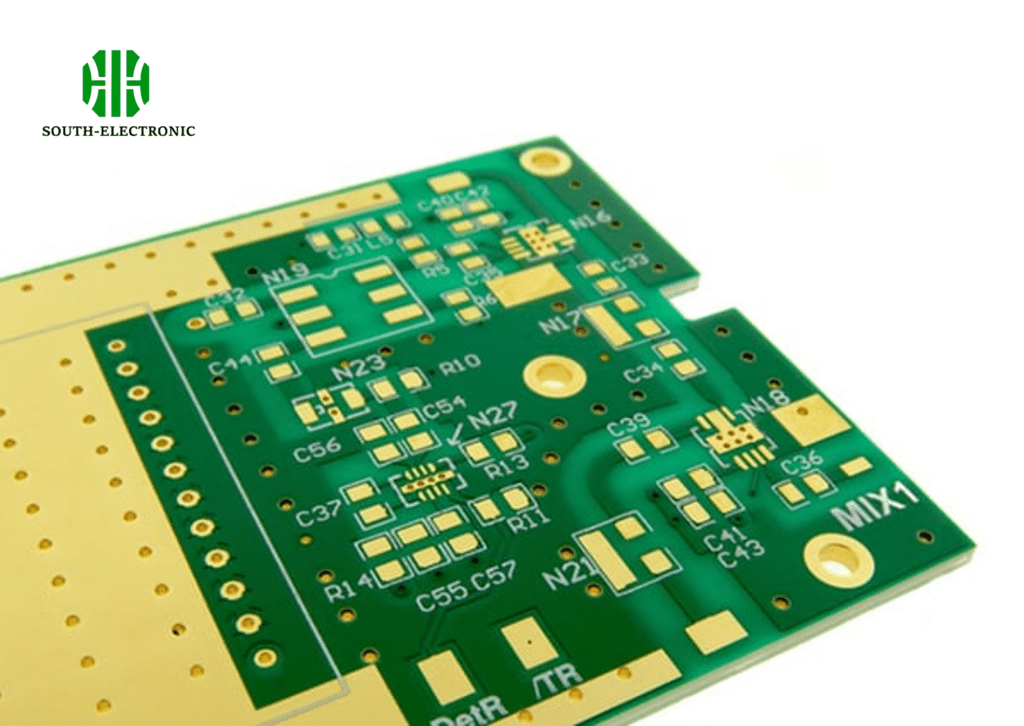

FR4 is used in all sorts of PCBs, from single-sided, double-sided, and multilayer boards. It is perfect for consumer electronics, automotive, industrial controls, and telecommunication devices because it has so many different uses.
Limitations of FR4
- High-Frequency Performance：FR4 may not be suitable for high-frequency applications due to its higher dissipation factor (Df) compared to specialized materials. This can affect the signal integrity in high-speed circuits.
- Impedance Control：Challenges in maintaining uniform impedance make FR4 less ideal for high-speed circuits. Proper impedance control is crucial for ensuring signal integrity in these applications.
- Choosing the Right FR4 Material：Selecting the appropriate FR4 variant involves considering factors like glass transition temperature (Tg), dielectric constant (Dk), and moisture absorption. High-performance FR4 materials, such as Isola 370HR, offer enhanced thermal and mechanical properties for demanding applications.
Comparison of Standard and High-Performance FR4：
| Property | Standard FR4 | High-Performance FR4 (e.g., Isola 370HR) |
|---|---|---|
| Glass Transition Temp (Tg) | 130-140°C | 180-200°C |
| Dielectric Constant (Dk) | 4.5-4.7 | 4.1-4.3 |
| Dissipation Factor (Df) | 0.02-0.03 | 0.015-0.02 |
| Thermal Decomposition Temp | 300-320°C | 350-370°C |
| Moisture Absorption | 0.10-0.20% | 0.08-0.15% |
FR4 in Consumer Electronics
FR4 is everywhere in consumer electronics because it’s cheap and works well. That’s why you see it in things like smartphones, laptops, and gaming consoles. It’s a good balance between cost and performance.
FR4 in Automotive Applications：
In the car biz, FR4 is used in all sorts of electronic control units (ECUs) and sensors. It can handle the heat and the abuse that comes with being in a car.
FR4 in Industrial Controls：
For industrial control systems, FR4-based PCBs offer durability and reliability. These systems often operate in demanding conditions where mechanical and thermal stability are critical.
FR4 in Telecommunication Devices：
Telecom devices need PCBs that can handle high-speed signals. FR4 has some limitations in high-frequency applications, but it’s still used in many telecom devices because it has a good overall balance of properties.
Applications of FR4 in Different Industries
| Industry | Typical Applications | Key Properties Utilized |
|---|---|---|
| Consumer Electronics | Smartphones, laptops, gaming consoles | Cost-effectiveness, reliability |
| Automotive | ECUs, sensors, infotainment systems | Thermal stability, mechanical strength |
| Industrial Controls | Control systems, automation equipment | Durability, reliability |
| Telecommunications | Routers, switches, communication devices | Signal integrity, insulation |
FR4 remains a top choice in PCB fabrication due to its reliability, affordability, and well-rounded properties. For specific applications, understanding its strengths and limitations helps in selecting the right material variant, ensuring optimal performance and longevity of the PCBs.
