Moisture kills electronics. Your PCB could fail tomorrow from humidity or spills. Water damage causes 34% of electronics failures. But you can protect circuits effectively. Let me show proven methods.
To waterproof PCB boards, use conformal coatings (acrylic, silicone), epoxy potting compounds, or waterproof enclosures. These methods create barriers against moisture while maintaining electrical functionality. Proper surface preparation ensures adhesion.
Understanding waterproofing techniques helps prevent costly failures. We'll examine why protection matters, compare materials, and share design strategies. First - why is this protection essential?
Why Do PCBs Need Waterproofing?
Phones die in rain. Industrial gear fails in humid factories. Medical devices corrode from bodily fluids. Your PCB faces invisible killers daily.
PCBs need waterproofing to prevent corrosion, short circuits, and electrical leakage. Moisture causes oxidation on copper traces and component leads, degrading performance over time. Environmental contaminants accelerate this damage.
Three key reasons demand waterproofing:
1. Environmental Exposure
| Threat | Effect on PCB | Solution |
|---|---|---|
| Humidity | Gradual corrosion | Conformal coating |
| Liquid spills | Instant short circuits | Waterproof enclosures |
| Condensation | Intermittent failures | Silicone conformal coating |
Outdoor equipment faces rain and temperature swings. I once repaired a garden sensor system where condensation killed 60% of boards monthly until we applied silicone coatings.
2. Electrical Failure Mechanisms
Water bridges component leads, creating unintended current paths. Even 5V circuits can corrode when exposed to salty moisture. Conformal coating pcb solutions increase surface insulation resistance by 1000x.
3. Long-Term Cost Reduction
Unprotected boards fail 3x faster in humid environments. Waterproofing materials add 15% initial cost but save 80% in replacements. Medical device manufacturers report 90% fewer field failures after implementing epoxy potting.
What Are the Best Waterproofing Materials for PCBs?
Options overwhelm engineers. Spray-on coatings? Potting compounds? How to choose?
Best PCB waterproofing materials: acrylic conformal coatings (easy repair), silicone coatings (flexibility), epoxy resins (maximum protection), and polyurethane (chemical resistance). Material choice depends on environment and required rework access.
Let's dissect the options:
Material Performance Comparison
| Material | Thickness | Flexibility | Temp Range | Rework Difficulty |
|---|---|---|---|---|
| Acrylic | 25-75µm | Low | -40°C+125°C | Easy |
| Silicone | 50-200µm | High | -55°C+200°C | Moderate |
| Epoxy | 0.5-2mm | None | -50°C+150°C | Impossible |
| Polyurethane | 25-100µm | Medium | -40°C+130°C | Difficult |
PCB waterproof spray (acrylic) works for consumer electronics. Automotive applications often use silicone for vibration resistance. Industrial boards in harsh environments need epoxy potting.

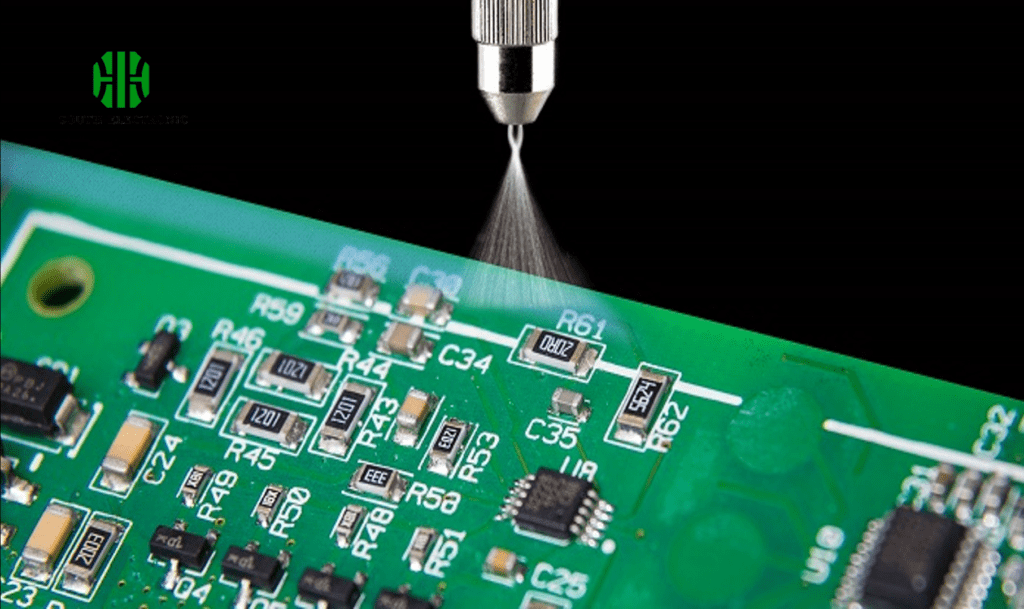

Application Methods Matter
- Spray coating: Fast but requires masking
- Brush coating: Precise control, slower
- Dip coating: Full coverage, higher material use
- Potting: Complete encapsulation
I recommend robotic spraying for high-volume production. For prototypes, hand brushing ensures critical components stay uncoated.

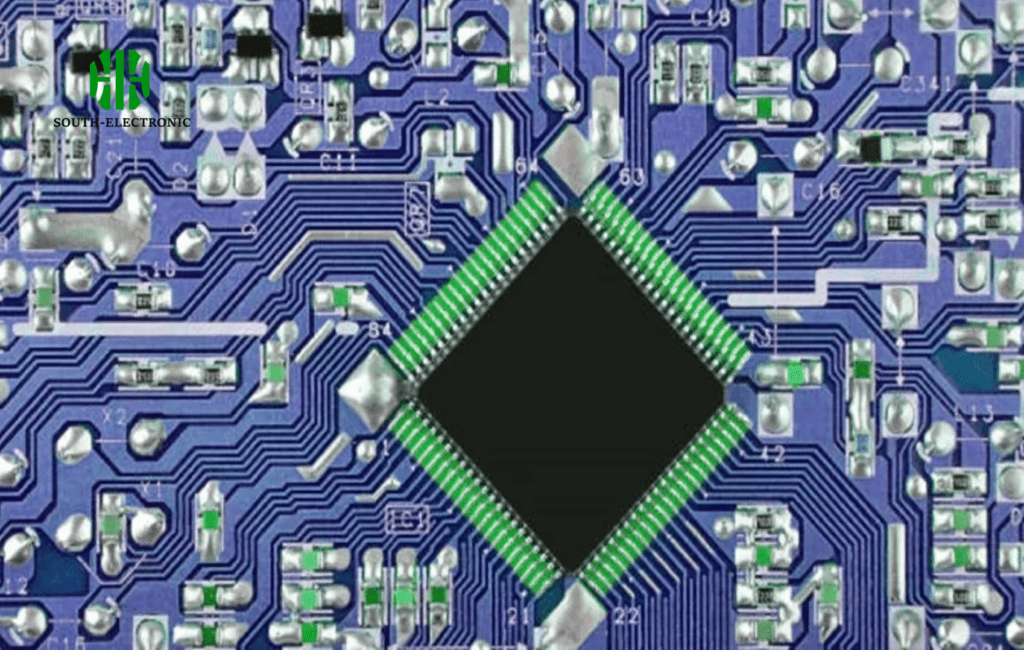

How to Design a PCB for Water Resistance?
Waterproofing starts before manufacturing. Smart design reduces failure points.
Design water-resistant PCBs by minimizing exposed pads, using waterproof connectors, adding drainage channels, and selecting conformal coating-compatible components. Position sensitive circuits away from board edges.
Implement these strategies:
1. Layout Best Practices
| Design Element | Waterproofing Benefit |
|---|---|
| Rounded corners | Reduces coating thin spots |
| 45° trace angles | Prevents liquid pooling |
| Ground plane flood | Limits moisture penetration |
| Edge keep-out zone | Protects from enclosure leaks |
2. Component Selection
- Use waterproof connectors (IP67+ rated)
- Avoid components with absorbent materials
- Select coatings-compatible IC packages
3. Design for Manufacturing
- Specify solder mask type (epoxy-based resists moisture better)
- Include test points for coating thickness verification
- Add fiducials for automated coating application
I once redesigned a marine GPS unit by moving connectors 5mm inward and using angled mounting. Field failures dropped by 70%.
Conclusion
Effective PCB waterproofing combines proper materials (coatings, potting), smart design (layout, components), and quality manufacturing. Choose methods matching your environment and maintenance needs. Protect your circuits - water always finds a way.
